Model Number:745-W2-P5-G5-HI-A-E-H
Windings Per Phase:2
Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum
Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA
Maximum Continuous Voltage Output:273 V
Display Type:40 character Enhanced LCD
Dimensions:Height: 9″, Width: 7″, Depth: 7 ⅛”
Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

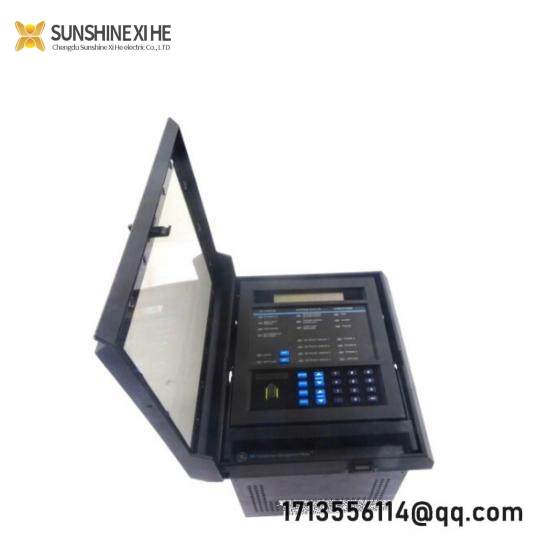

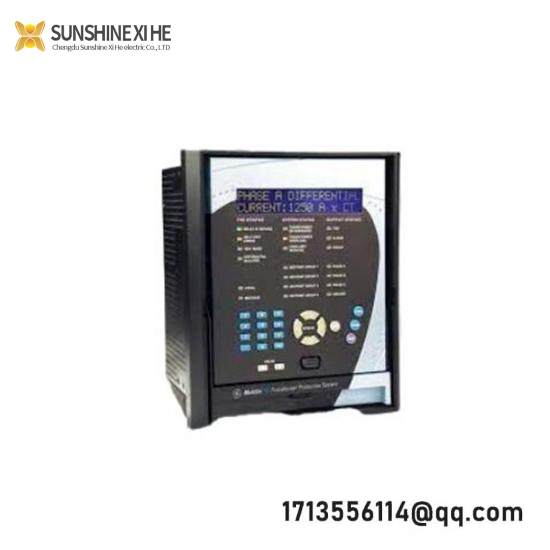

The GE SR745-W2-P5-G5-HI is a highly advanced transformer protection system designed to manage and safeguard critical electrical equipment like transformers, autotransformers, and reactors. With its enhanced 40-character display and expanded keypad, it allows for easy manual entry of setpoints, making it user-friendly and efficient. The system is housed in a durable SR 745 series chassis that protects the relay during the draw-out process and enhances durability in harsh operating environments. Key features include a 2-winding per phase configuration, resistant temperature devices (RTDs), and a robust analog output system with maximum load capacities. Its large display provides real-time status updates and alerts, ensuring that operators are always informed about the health of their systems. Additionally, the system can be mounted on a standard 19-inch panel, offering flexibility in installation options. Designed for reliability and ease of use, the GE SR745-W2-P5-G5-HI is an essential component for any industrial control system looking to protect and extend the lifespan of critical electrical equipment.
