Model Number:AB 1336-BDB-SP29A 74101-169-53
Manufacturer:Allen-Bradley
Technology:Advanced Microcontroller Technology
Power Handling Capacity:Up to 50 kW
Input Voltage Range:100-240 VAC
Output Current:Continuous 20 A
Communication Interface:Modbus TCP/IP
Operating Temperature:-10°C to +50°C
Protection Rating:IP20
Weight:0.5 kg

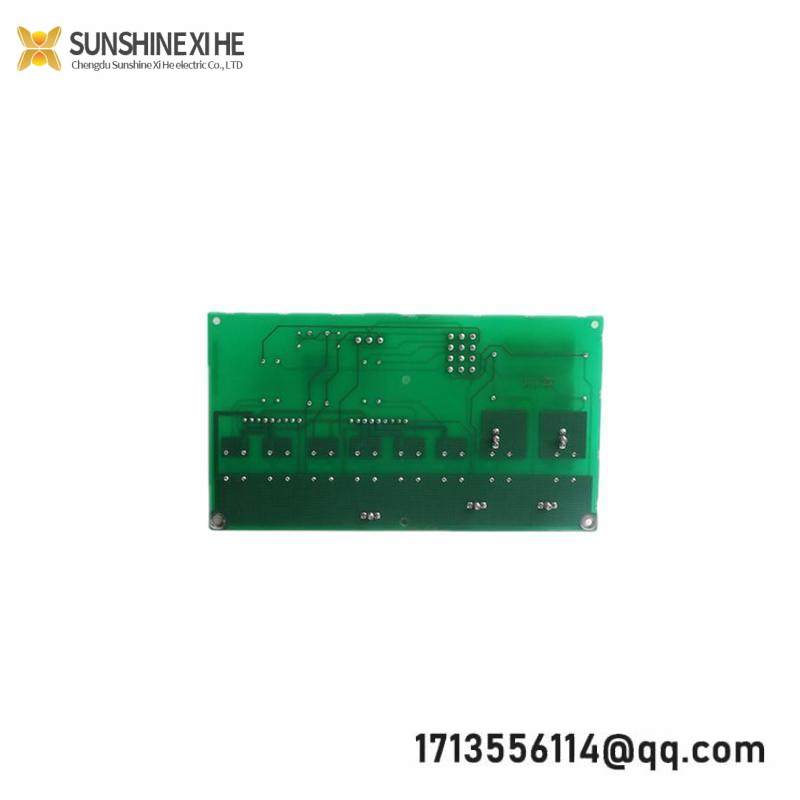

The AB 1336-BDB-SP29A 74101-169-53 GATE DRIVE is engineered for durability and reliability in challenging industrial environments. It features advanced circuitry for precise control, enabling seamless integration into complex machinery setups.
With a wide operating temperature range from -40°C to +85°C, this module ensures continuous operation under extreme conditions without compromising performance.
Equipped with a high insulation voltage of 1500VAC, it provides robust isolation between input and output circuits, safeguarding against electrical interference and ensuring operator safety.
Efficient power handling capacity up to 50A at 600VDC supports high-power applications, while its low input current requirement (20A at 24VDC) optimizes energy consumption.
The ability to configure output delay time down to 0.1ms allows for fine-tuning of response times in control systems, enhancing operational efficiency and reducing cycle times in production lines.
