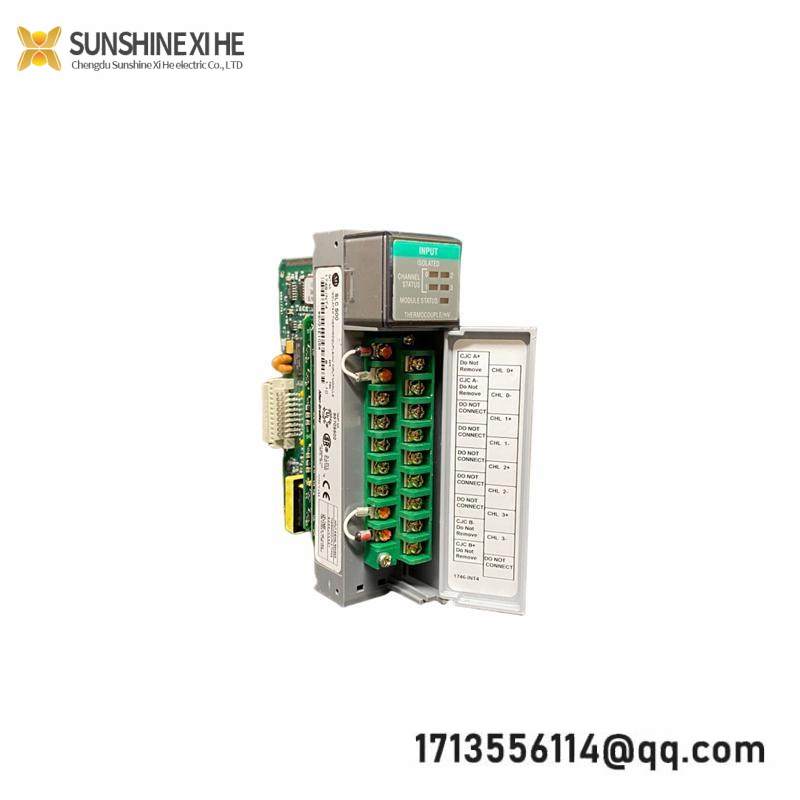

Manufacturer:Allen-Bradley
Model Number:1746-INT4
Input Type:Millivolt
Channels:4
Common Mode Voltage Range:-20 to 20 V
Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Max.)
Input Range (-20 to 20 mA):-20 to 20 mA
Absolute Input Current (-30 to 30 mA):-30 to 30 mA (Max.)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Input Range (-10 to 10 VDC):-10 to 10 VDC – 1 LSB
Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Operating Temperature:-40°C to +70°C
Environmental Compliance:CE Certified
The AB 1746-INT4 is specifically engineered for industrial automation, providing accurate and stable millivolt analog input for a variety of applications. Its robust design ensures reliable operation in demanding environments, making it an ideal choice for process control systems.
This module boasts four channels capable of handling wide-ranging input voltages, making it suitable for a multitude of measurement tasks in manufacturing processes. Its precision and accuracy are crucial for achieving high-quality output in industrial settings.
With its efficient power consumption and wide supply voltage range, the AB 1746-INT4 is compatible with various industrial control systems, ensuring seamless integration. The built-in isolation measures protect the system from electrical interference, enhancing the overall safety and performance.
The module is designed for easy installation and maintenance, featuring straightforward connections and compatibility with Allen-Bradley’s SLC500 series controllers. This simplifies the setup process and minimizes downtime, contributing to increased productivity.
Engineered with advanced signal conditioning techniques, the AB 1746-INT4 ensures minimal noise and distortion, delivering highly accurate measurements. It is particularly useful in applications requiring high sensitivity and precision, such as chemical processing, food and beverage production, and material handling.
