Module Type:Discrete output module
Product ID:1746-OV16
Nominal Input Voltage:24VDC
Input Voltage Range:10-50 VDC
Backplane Current Consumption:0.270 A
Voltage Range:10-50 Volts DC
Outputs:16 sink outputs
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating – Backplane:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation – Communication Circuits:500 VDC
Isolation – Backplane:1500 VAC
Processor:SLC 500
Temperature Rating:0 – 60 °C
Environmental Conditions:5 – 95%
Mounting:Chassis

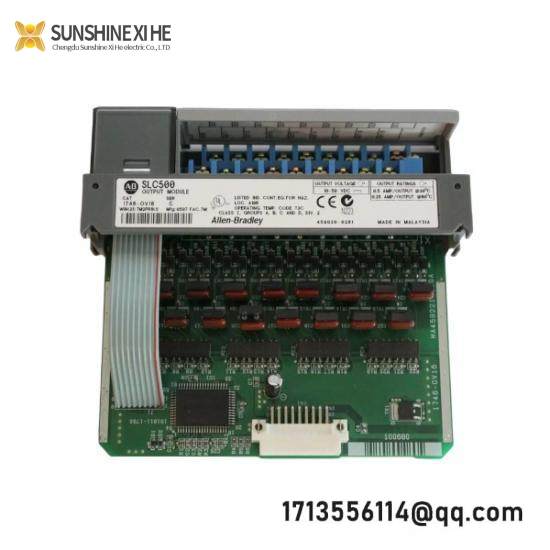

The AB 1746-OV16 is a high-performance discrete output module that provides robust digital control for industrial automation systems. Designed specifically for use with the Allen Bradley SLC 500 series PLCs, this module ensures seamless integration and reliable operation. With 16 sink outputs capable of handling up to 1 mA load, the module offers excellent flexibility for various industrial applications. The module is equipped with stringent isolation standards, including 500 VDC communication circuits and 1500 VAC backplane isolation, ensuring safe and stable performance under different conditions. Its open-type enclosure and chassis mounting design make it easy to install and maintain, while its wide temperature range of 0-60°C makes it suitable for demanding environments. Additionally, the AB 1746-OV16 has been meticulously engineered to provide consistent and reliable operation, with a continuous current rating of up to 4 A per module at 60°C. Whether you’re automating a factory floor or integrating control systems, the AB 1746-OV16 delivers the precision and reliability you need.
