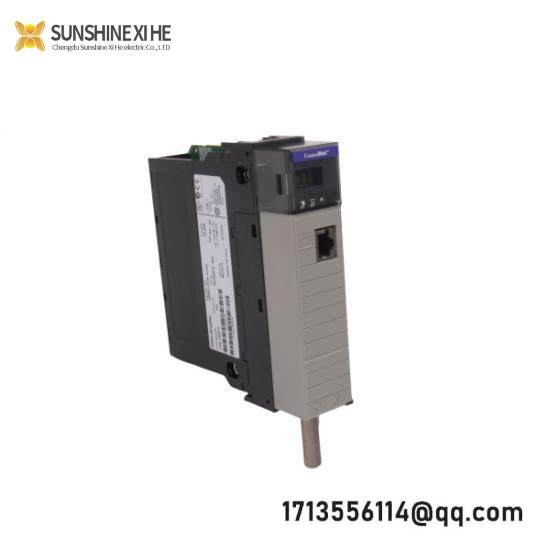

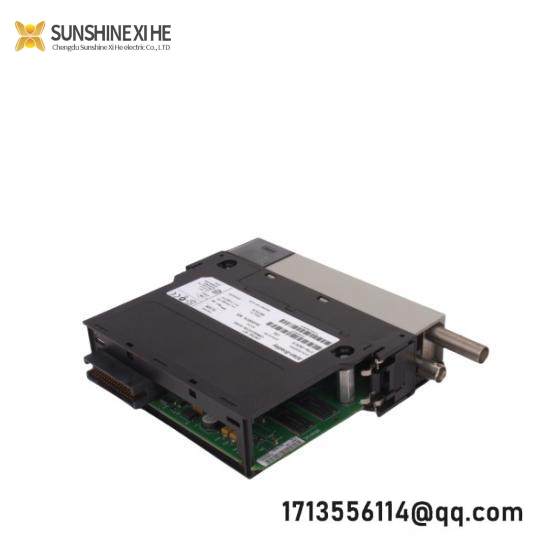

AB 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module

Model Type:Redundant Bridge Module

Model Number:1756-CN2R/B

Manufacturer:Allen-Bradley

Number of Channels:2

Current Rating (Drawn):970 MA at 5.1 VDC, 1.7 MA at 24 VDC

Isolation:30 V (Continuous), Basic Insulation Type

Communication Protocols:ControlNet A/B to Backplane, ControlNet A to ControlNet B

Enclosure:Open Type

RFI Suppression:Radiated: 10 V/M with 1 KHZ Sine-Wave 80% AM from 80 – 2000 MHZ, etc.

Temperature Rating:32 – 140 DEG F

Amperage Rating (Drawn):400 MA at 5.1 V

    This AB 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module is engineered to enhance system robustness and efficiency by providing dual channels for redundant operation. It seamlessly integrates with ControlLogix systems and ControlNet networks, ensuring smooth data exchange and fault tolerance.

    Featuring an open-type enclosure, this module supports a wide temperature range from -40°C to +70°C, making it suitable for various industrial environments. Its advanced isolation technology ensures high electrical safety and reduces interference, guaranteeing reliable performance.

    With its comprehensive RFI suppression capabilities, the module can withstand harsh electromagnetic environments, safeguarding against potential disruptions and ensuring consistent network communication.

    Designed for long-term durability, this module consumes up to 4 watts of power, making it energy-efficient for continuous operation. Its compact size and robust construction allow for easy integration into existing control systems.

    Ideal for applications requiring redundancy and enhanced network reliability, the AB 1756-CN2R/B ControlLogix ControlNet Redundant Bridge Module is a trusted choice for manufacturers seeking to optimize their automation infrastructure.
