Model Type:ControlLogix
Manufacturer:Allen Bradley
Product ID:1756-OB16E
Product Type:Digital DC output
No. of Outputs:16
Output Voltage Range:10-31.2 VDC
Nominal Output Voltage:24 VDC
Connection:12-24 Volts DC
Module Designation:Allen Bradley Type Designation
Series:ControlLogix
Extended Product Type:Allen Bradley 1756-L63
Backward Compatibility:MVI56-MNETR versions
Single-Slot ControlLogix Backplane Compatibility:
Ethernet Configuration:10/100 Mbps auto crossover detection
Ethernet Port:Ethernet configuration and application port
User-Defined Module Data Memory Mapping:Up to 5000, 16-bit registers
CIPconnect-Enabled:Network configuration and diagnostics monitoring
Communication Throughput:Reduced I/O image size for remote rack implementations
Optimization Feature:ProSoft Configuration Builder (PCB) software

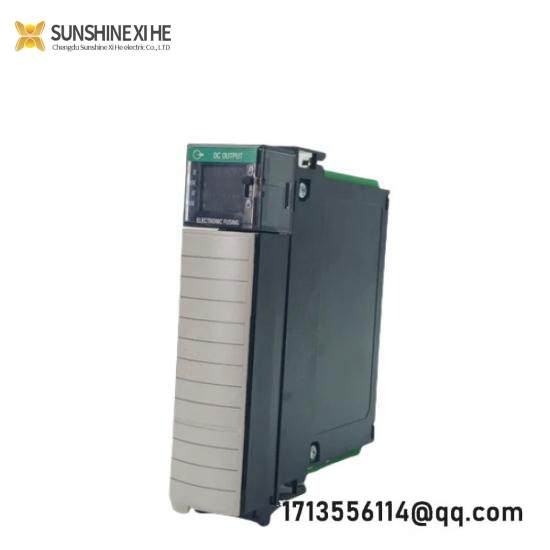

The Allen Bradley 1756-OB16E ControlLogix 16-Point D/O Module is engineered to meet the demands of today’s sophisticated manufacturing systems. Its 16 electronically fused outputs ensure consistent performance, reducing downtime and enhancing operational efficiency.
This module is compatible with a wide range of Allen-Bradley products, including the ControlLogix series, allowing seamless integration into existing control systems. Its compatibility with previous MVI56-MNETR versions ensures backward compatibility and future-proofing of your investment.
With its user-definable module data memory mapping, you can customize the module to suit your specific needs, maximizing flexibility and efficiency. The ability to map up to 5000, 16-bit registers provides ample space for storing critical data.
The module boasts an optimized image size designed for remote rack implementations, making it ideal for large-scale industrial installations. Its advanced communication features, including EtherNet/IP pass-through, enable efficient data transfer and diagnostics, streamlining maintenance processes.
Equipped with a ProSoft Configuration Builder (PCB) software, setting up and configuring the 1756-OB16E is made simple and intuitive. This tool allows for quick and accurate configuration, saving time and reducing errors during setup.
