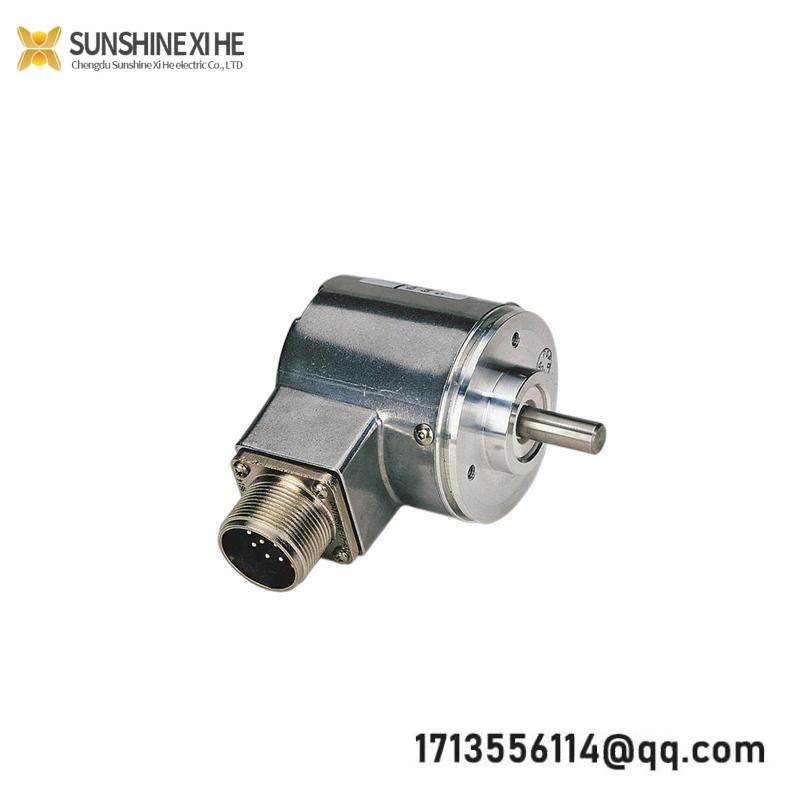

AB Electronics AB 845H-SJDZ24FWY2C Incremental Encoder

Type:Incremental Encoder

Model Number:AB 845H-SJDZ24FWY2C

Rotation Range:360°

Resolution:1024 PPR

Operating Voltage:10V to 30V DC

Output Type:Push-pull

Cable Length:2m

Material:Aluminum housing with stainless steel shaft

IP Rating:IP67

Operating Temperature:-20°C to +85°C

Load Capacity:Up to 20Nm

Mounting Style:Bolted flange mount

Weight:Approx. 200g

    The AB Electronics AB 845H-SJDZ24FWY2C Incremental Encoder is engineered for demanding industrial environments, offering unparalleled reliability and accuracy in position control applications.

    Featuring an aluminum housing with a robust stainless steel shaft, this encoder ensures durability and resistance to harsh conditions, making it ideal for factory automation, robotics, and CNC machinery.

    With a resolution of 1024 pulses per revolution (PPR), the encoder provides precise angular measurements, critical for applications requiring high-resolution feedback.

    The push-pull output type allows for efficient signal transmission and easy integration into various control systems, ensuring smooth operation and minimal error margins.

    IP67 rated, the encoder is protected against dust ingress and capable of withstanding temporary immersion in water, making it suitable for applications where environmental conditions can be challenging.

    Equipped with a 2-meter cable for flexibility in installation, this encoder supports versatile mounting options thanks to its bolted flange design, accommodating diverse setup requirements.
