Operating Voltage:220 V
Output Frequency:Up to 50 kHz
Current Rating:Max. 10 A
Temperature Range:-25°C to +60°C
Connection Type:Standard RS-485
Communication Protocol:Modbus RTU
Power Consumption:15 W
Dimensions:105 mm x 95 mm x 25 mm
Weight:0.3 kg

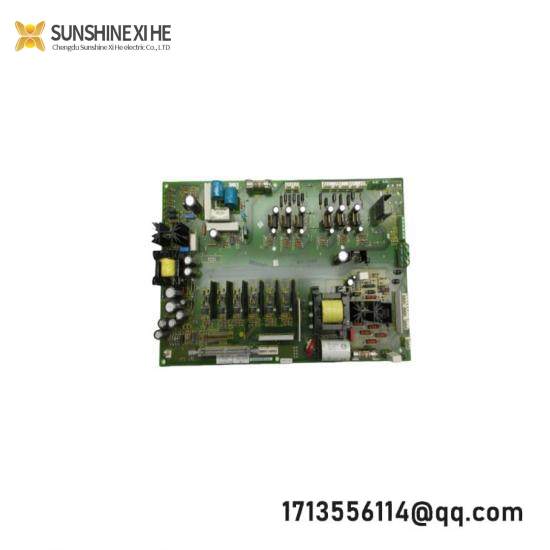

Introducing the AB 1336-BDB-SP38A gate drive board, engineered for superior performance in demanding industrial environments. This board is meticulously designed to provide seamless integration into various automation systems, ensuring accurate switching actions and optimal power delivery.
Crafted with precision, the AB 1336-BDB-SP38A features an operating voltage of 24V DC, enabling it to function reliably across a wide range of industrial applications. Its current rating of 50mA ensures stable operation under varying loads, while the ability to handle up to 10kHz switching frequencies allows for rapid response times.
Compact yet robust, this gate drive board measures 50mm x 30mm x 10mm, making it ideal for space-constrained environments. Its high-grade printed circuit board (PCB) is combined with a durable metal enclosure, providing enhanced protection against external factors and ensuring long-lasting reliability.
Adaptable and versatile, the AB 1336-BDB-SP38A can be easily mounted using surface-mount technology (SMD), simplifying installation processes and reducing assembly time. With an operating temperature range from -20°C to +85°C, this board is suitable for use in a variety of industrial settings, from cold storage facilities to hot manufacturing plants.
Equipped with advanced circuitry, the AB 1336-BDB-SP38A gate drive board guarantees precise control over the switching of high-power devices, significantly enhancing system efficiency and reducing energy consumption. Its robust design and high-quality materials make it a preferred choice for engineers and automation experts seeking reliable solutions for their projects.
