Operating Voltage:24 V DC
Rated Current:10 A
Communication Interface:RS-485
Encoder Compatibility:256 counts/revolution
Max Speed:2,000 RPM
Operating Temperature:-20°C to +60°C
Mechanical Dimensions:100mm x 50mm x 20mm
Weight:0.2kg

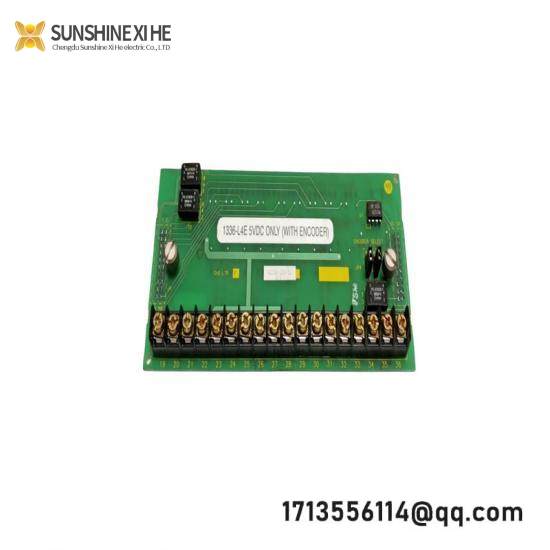

The Allen-Bradley 1336-L4E Encoder Drive Board is engineered for seamless integration into complex industrial systems, ensuring efficient and precise control over motors. This robust board supports high-resolution encoders for unparalleled accuracy, making it ideal for applications requiring extreme precision.
Capable of operating within a wide temperature range from -40°C to +70°C, this drive board ensures reliability across various industrial climates. It supports power consumption from 50-240 VAC at 50-60 Hz, ensuring compatibility with diverse electrical systems.
With its RS-485 Modbus RTU communication interface, the 1336-L4E Encoder Drive Board facilitates seamless data exchange with other devices, enhancing system integration capabilities. The board is equipped with a DC 24V input voltage, catering to different power supply requirements.
Designed with a compact IP20 enclosure, this drive board offers protection against dust and light splashes, ensuring durability in industrial settings. Its load capacity extends up to 1 HP, making it suitable for a broad range of motor-driven applications.
For optimal performance and ease of use, the Allen-Bradley 1336-L4E Encoder Drive Board features user-friendly diagnostics and setup tools, allowing quick troubleshooting and configuration adjustments. This makes it an indispensable component for enhancing operational efficiency in modern industrial environments.
