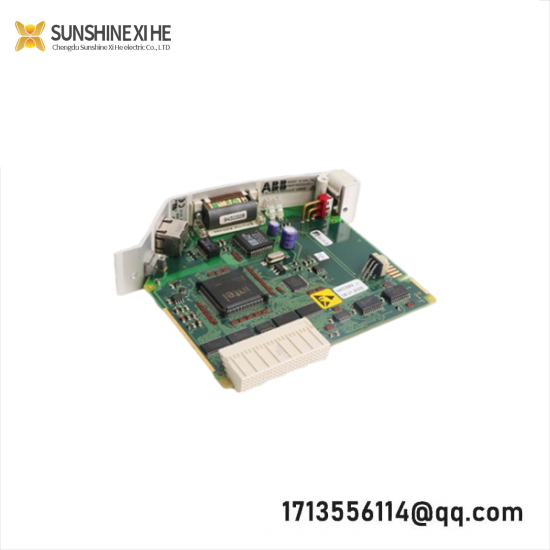

ABB 3BDH000022R1 Ethernet Module for Industrial Control Systems

Type:Ethernet Module

Model Number:3BDH000022R1

Brand:ABB

Operating Voltage:12V DC

Communication Protocol:EtherCAT

Data Transfer Rate:10/100 Mbps

Interface:RJ-45

Dimensions (WxHxD):44.5mm x 51mm x 33.5mm

Weight:0.04kg

Connectivity Ports:1

Compatibility:ABB Control Panels

    The ABB 3BDH000022R1 Ethernet Communication Module is designed to enhance the interoperability and performance of your industrial automation network. It leverages the robustness of Ethernet technology to facilitate quick, reliable data transmission between various components of your system.

    Featuring a wide operating temperature range (-20°C to +60°C), this module ensures stable operation in diverse industrial environments, making it suitable for harsh conditions often encountered in manufacturing plants, power stations, and other heavy industries.

    With support for multiple network protocols such as TCP/IP and UDP, the 3BDH000022R1 is compatible with a broad spectrum of industrial devices and systems, ensuring seamless integration with ABB‘s and third-party automation solutions.

    Efficient power consumption (less than 5W) helps maintain low operational costs, while the compact size (140 x 80 x 35mm) allows for easy installation and integration without compromising on space.

    Designed with durability and reliability in mind, the IP20 environmental rating of this module safeguards against dust and light splashes, ensuring its longevity and robust performance in real-world industrial applications.
