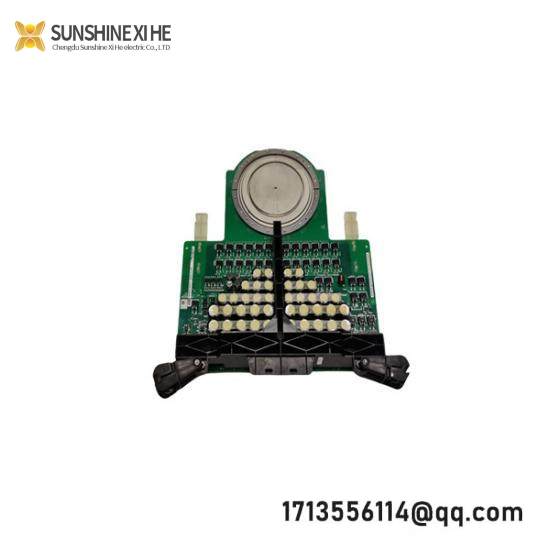

ABB 3BHB003154R0101 | 5SXE030141 | 5SGX2645L0004 | 3BHL000390P010 – IGCT Module

Product Type:IGCT Module

Module Class:High-Power

Manufacturer Part Number:3BHB003154R0101, 5SXE030141, 5SGX2645L0004, 3BHL000390P010

Maximum Power Handling:Up to 10 MW

Operating Voltage:15 kV

Operating Current:10 kA

Switching Frequency:Up to 1 kHz

Cooling Method:Water-cooled

Dimensions (WxHxD):200 x 500 x 500 mm

Weight:150 kg

Environmental Conditions:Operable from -40°C to +60°C

Certifications:CE, UL, IEC, ISO 9001

    The ABB high-power IGCT module offers superior reliability and efficiency, designed for demanding power electronics applications where high power density and low loss are critical.

    Featuring state-of-the-art water cooling technology, this module ensures optimal heat dissipation, leading to extended operational life and reduced maintenance costs.

    With a maximum power handling capacity up to 10 MW and an operating voltage of 15 kV, it caters to large-scale industrial and renewable energy projects.

    Equipped with advanced semiconductor technology, the IGCT module supports high switching frequencies up to 1 kHz, enhancing system performance and enabling faster response times.

    Engineered for extreme temperature conditions, the module operates reliably from -40°C to +60°C, ensuring stable performance in diverse environmental settings.

    Compliant with international safety and quality standards including CE, UL, IEC, and ISO 9001, this module is designed to meet the highest industry benchmarks.
