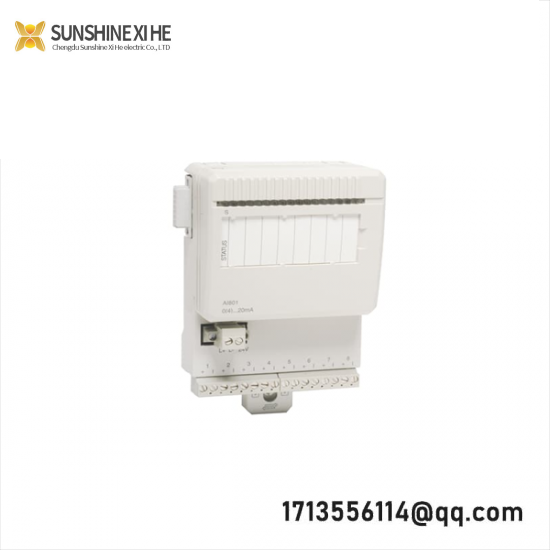

ABB 3BSE020512R1 AI801 Analog Input Module

Number of Channels:8

Analog Input Type:Voltage

Range:-10V to +10V

Sampling Rate:10 kHz

Accuracy:±0.01%

Power Consumption:1.5W

Operating Temperature:-25°C to +60°C

Storage Temperature:-40°C to +85°C

Connection Type:Terminal Block

Communication Interface:DeviceNet, Profinet

    The ABB 3BSE020512R1 AI801 Analog Input Module is designed for precision and reliability, essential for complex industrial automation systems. Its robust 8-channel design ensures seamless integration into existing setups, enhancing operational efficiency.

    Each channel supports versatile input types, accommodating both voltage and current signals, making this module suitable for a wide range of applications from temperature monitoring to process control.

    With a resolution of 12-bits, the AI801 offers exceptional accuracy, crucial for applications where minute variations in signal can impact overall system performance.

    Operates within a stable 10V DC to 30V DC voltage range, ensuring compatibility with various power sources found in industrial environments. This wide range also minimizes the need for external voltage regulators.

    Integrated with Modbus RTU communication protocol, the module facilitates easy data exchange between itself and other devices in the network, streamlining system management and maintenance.

    Compact yet sturdy, the dimensions and lightweight design (0.24kg) make it easy to install and integrate into different configurations without compromising on performance or space considerations.
