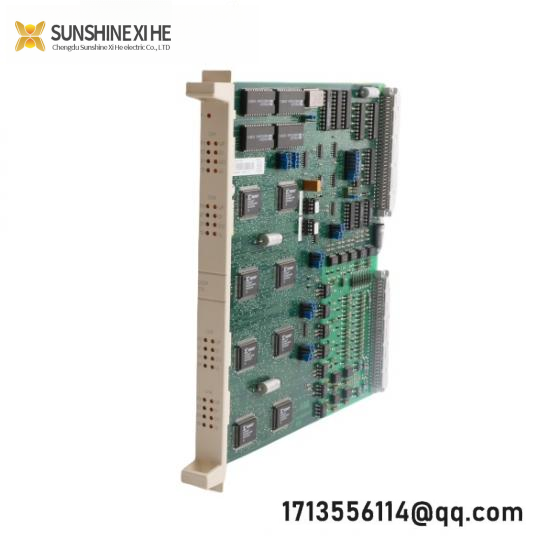

ABB DSDP170 57160001-ADF Pulse Counting Module

Brand:ABB

Model Number:DSDP170 57160001-ADF

Module Type:Pulse Counting

Operating Temperature:-25°C to +60°C

Input Voltage Range:DC 10V to 30V

Output Signal:Open Collector, Max. 25mA

Counting Rate:Up to 1 MHz

Accuracy:+/- 0.01% of reading or 1 count, whichever is greater

Size (WxHxD):54mm x 56mm x 22mm

Weight:Approx. 60g

    The ABB DSDP170 57160001-ADF Pulse Counting Module is designed for precision pulse counting tasks in industrial environments, offering high-speed signal processing capabilities that enhance operational efficiency.

    Featuring a compact design that accommodates diverse signal types, this module supports TTL, CMOS, and open collector inputs, making it compatible with a wide range of industrial systems.

    With an operating temperature range from -25°C to +60°C, the DSDP170 is built for robust performance in varying environmental conditions, ensuring reliability in harsh industrial settings.

    Equipped with less than 2W of power consumption, this module optimizes energy usage, contributing to cost savings and sustainable operation.

    For seamless integration, the module offers RS485 communication with Modbus RTU protocol support, enabling easy connection to existing industrial networks. Additionally, it provides two sets of relay outputs for efficient data handling.
