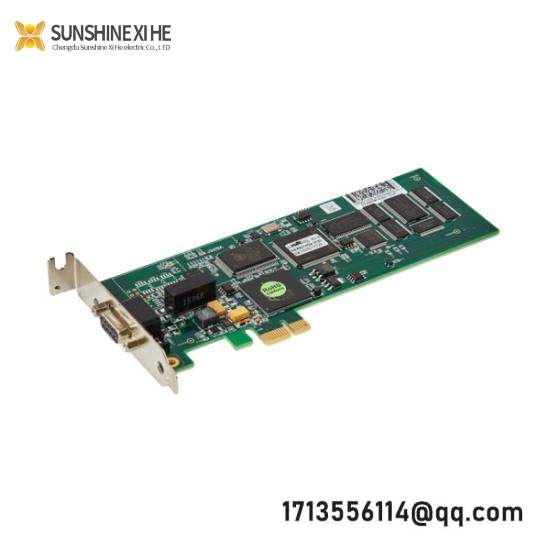

ABB DSQC1005 3HAC044872-001 PB-PR01-PCLE PROFIBUS M PCIe Module

Manufacturer:ABB

Model:DSQC1005 PROFIBUS M PCIe

Part Number:3HAC044872-001

Type:Industrial Communication Module

Interface:Profibus-DP

PCIe Slot:M

Weight:0.15 kg

Dimensions:170 x 100 x 30 mm

Operating Temperature Range:-20°C to +60°C

Power Consumption:Max. 15 W

Communication Speed:Up to 12 Mbps

Number of Inputs/Outputs:16 each

Bus Support:RS-485

Connection Type:M12 Connector

Environmental Protection:IP20

    The ABB DSQC1005 PROFIBUS M PCIe module is an advanced communication solution designed for efficient data exchange between industrial devices and control systems. This compact and robust module ensures reliable and fast transmission speeds, making it ideal for complex manufacturing environments.

    With its PCI Express interface, the DSQC1005 allows for direct integration into modern computer systems, simplifying system architecture and enhancing scalability. It supports PROFIBUS DP v1, ensuring compatibility with a wide range of fieldbus devices.

    Featuring a rugged IP20 enclosure, this module can withstand harsh industrial conditions, ensuring reliable operation even in challenging environments. The DSQC1005 offers a power supply of 24V DC, suitable for most industrial applications.

    This module supports up to 12 Mbps communication speed, enabling real-time data processing and quick response times in automation tasks. Its operating temperature range from -20°C to +60°C makes it suitable for both indoor and outdoor installations.

    The ABB DSQC1005 PROFIBUS M PCIe module comes equipped with comprehensive safety features and compliance with international standards, ensuring reliability and ease of integration into existing industrial networks. It is an excellent choice for optimizing production efficiency and enhancing operational performance.
