ABB DSQC697: DeviceNet Interface Module, Expert Control Solution

Module Type:DeviceNet

Manufacturer:ABB

Model Number:DSQC697

Operating Temperature:-25°C to +70°C

Power Consumption:Max. 50mA at 24V DC

Communication Speed:Up to 1Mbps

Number of Inputs:16 Digital Inputs

Number of Outputs:16 Digital Outputs

Memory Capacity:1K Bytes

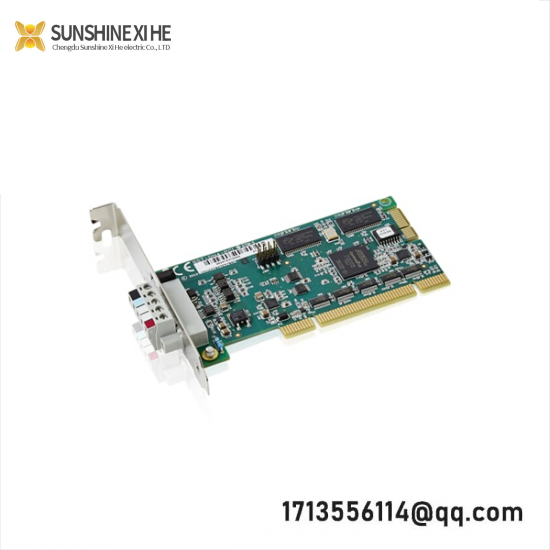

    The ABB DSQC697 DeviceNet Board is an advanced communication module designed for seamless integration with ABB‘s programmable logic controllers (PLCs). This compact board supports the DeviceNet protocol, enabling direct connection to a wide range of field devices, including sensors, actuators, and other control components.

    With 16 digital inputs and 16 digital outputs, the DSQC697 provides ample connectivity options for industrial automation systems. Its high current capability ensures reliable operation even under demanding conditions.

    Featuring a robust design that withstands harsh environments, the DSQC697 operates within a temperature range of -20°C to +60°C, making it suitable for various industrial applications. Its reliability rating, Class H, guarantees dependable performance over extended periods.

    The board’s small size and lightweight design facilitate easy installation in compact machinery and systems, without compromising on functionality. Its compact form factor also reduces the overall footprint of the automation setup, optimizing space utilization.

    The ABB DSQC697 DeviceNet Board is equipped with a user-friendly interface that simplifies configuration and setup processes. It supports intuitive programming through the ABB Ability™ software suite, ensuring efficient commissioning and maintenance.

    Backed by ABB‘s commitment to quality and innovation, the DSQC697 is a reliable choice for enhancing the performance and connectivity of industrial automation systems. It seamlessly integrates with existing infrastructure, offering enhanced capabilities without the need for extensive system reconfiguration.
