Model Type:SLC 500
Model Number:1746-OV8
Number of Channels:8
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 mA
Load Capacity:1 mA
Current Rating per Output:0.25 A at 60°C
Continuous Current per Module:4 A at 60°C
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Enclosure Type:Open Type
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95%
Operating Voltage:24 VDC
Wiring Configuration:Common anode

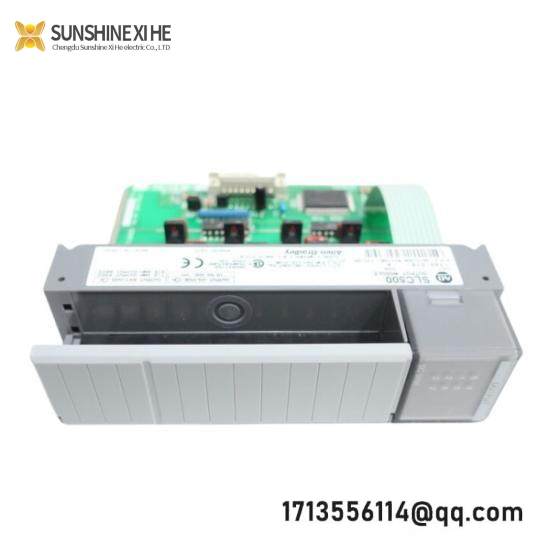

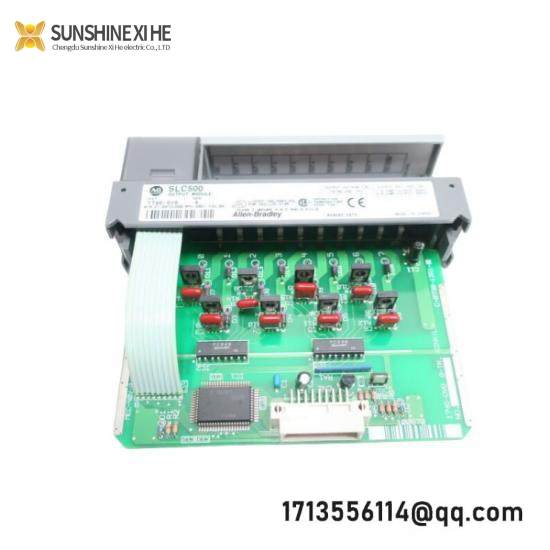

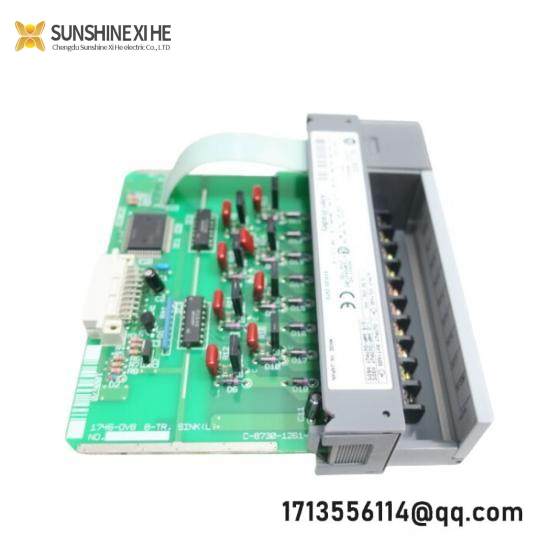

Engineered with precision and reliability, the Allen Bradley 1746-OV8 Output Module is a cornerstone component in industrial automation systems. It supports 8 high-speed digital outputs, each capable of delivering robust performance under harsh conditions.
This module is designed to integrate seamlessly into existing SLC 500 systems, offering enhanced control capabilities with its advanced communication interfaces. It supports Ethernet/IP, DeviceNet, and Remote I/O protocols, facilitating seamless integration and communication within complex industrial networks.
With an operating voltage range of 10 to 50 VDC, the 1746-OV8 Output Module ensures compatibility with a wide variety of industrial devices. Its low on-state voltage drop and minimal leakage current guarantee efficient power usage and minimized system impact.
Featuring a temperature range of -40°C to +70°C, this module is built to withstand extreme environmental conditions commonly found in industrial settings. Its IP20 enclosure provides adequate protection against dust and minor water splashes, enhancing durability and reliability.
The Allen Bradley 1746-OV8 Output Module comes equipped with an intuitive interface and easy-to-follow installation guidelines, making it accessible for both experienced engineers and those new to industrial automation. Its compact design allows for efficient use of space within industrial control panels.
