Model:SLC500
Number:1746-A10
Capacity:10 Slot
Mounting:Panel
Temperature Rating:0 – 60 DEG C
Enclosure:Open Type
Form Factor:Slot Type Chassis
Cooling:Convection
Length:5.8 IN
Width:15.9 IN
Height:6.8 IN
Maximum Backplane Current:5.1 VDC At 10 A, 24 VDC A 2.88 A
Weight:3.2 LB Without Modules
Power Consumption:1.8 W
Power Dissipation:6.1 BTU/HR
Standard/Approvals:GOST_R, KCC, MARINE-ABS, MARINE-BVS, MARINE-DNV, MARINE-GL, MARINE-KRS, MARINE-LR

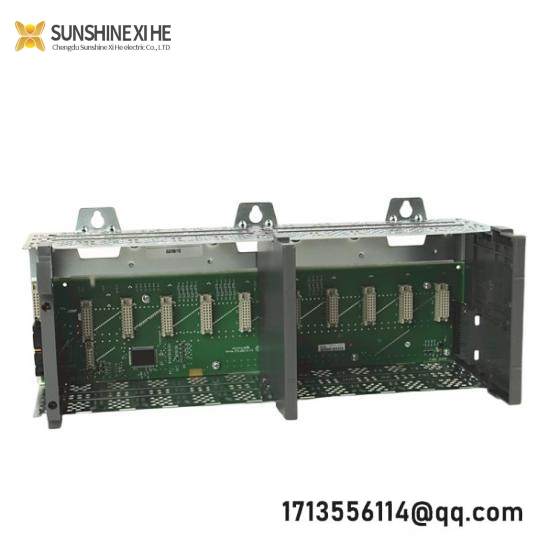

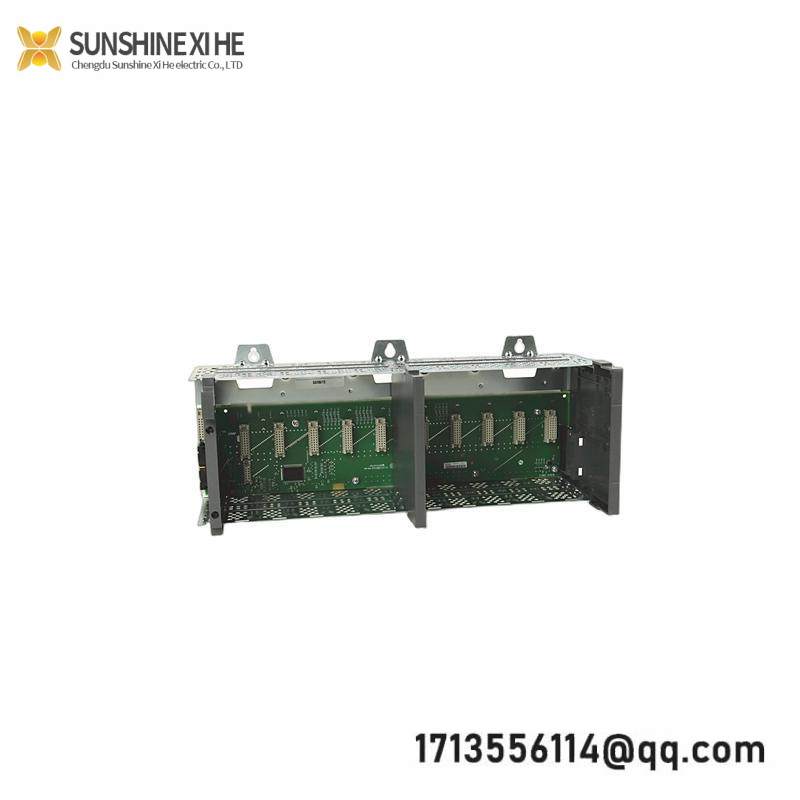

The Allen-Bradley 1746-A10 SLC500 I/O Chassis is designed to meet the stringent requirements of industrial environments. Its robust construction and reliable performance make it a trusted choice for automation systems.
This I/O chassis supports up to 10 slots, allowing for flexible expansion and configuration to suit specific needs. Whether you’re integrating new components or expanding existing systems, the 1746-A10 offers versatile solutions.
With its open-type enclosure, the 1746-A10 ensures easy access to modules for maintenance and upgrades. The convection cooling system efficiently dissipates heat, ensuring stable operation even under demanding conditions.
The 1746-A10 complies with numerous international standards, including GOST_R, KCC, and multiple marine certifications. This ensures compatibility and safety across diverse applications, from manufacturing plants to offshore installations.
Installation and integration are straightforward with the 1746-A10’s panel-mount design. Its compact dimensions—5.8 inches in length, 15.9 inches in width, and 6.8 inches in height—make it suitable for space-constrained environments.
