Number of Channels:8
Output Configuration:Digital DC
Operating Voltage:5 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:≤1 MA
Load Capacity:≤1 MA per channel
Current Rating:Continuous: 0.25 A per output, 8 A per module at 60°C
Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC
Temperature Range:-40°C to 70°C
Enclosure Type:Open
Mounting:Chassis
Environmental Conditions:5 – 95% non-condensing

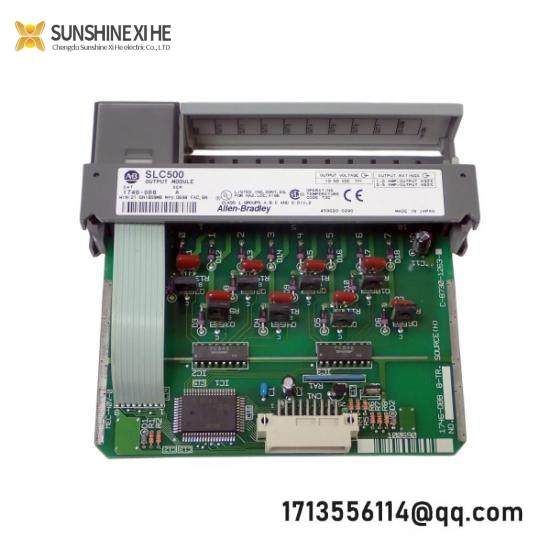

Engineered for precision and reliability, the Allen Bradley 1746-OB8 Output Module is a cornerstone of modern industrial automation systems. With its compact design and robust performance capabilities, this module ensures smooth operation under demanding conditions.
This high-resolution digital output module is equipped with eight channels, each capable of delivering a voltage range from 5 to 50 VDC. This versatility allows it to adapt to a wide array of applications, from simple on/off controls to complex, multi-level adjustments.
Featuring a low on-state voltage drop and minimal off-state leakage current, the 1746-OB8 ensures efficient power usage and reduced heat generation, contributing to an overall reduction in energy consumption and maintenance costs.
The module’s isolation characteristics, including 500 VDC for communication circuits and 1500 VAC for the backplane, guarantee a safe operational environment even in highly electrified settings. This feature is particularly beneficial in environments prone to electrical interference, ensuring stable and consistent performance.
With compatibility across various control protocols, including EtherNet/IP, DeviceNet, and Remote I/O, the Allen Bradley 1746-OB8 facilitates seamless integration into existing network infrastructures. This compatibility enhances system scalability and flexibility, making it a versatile choice for both new installations and upgrades.
