Model Type:Digital Contact Output Module
Product ID:1746-OW16
Manufacturer:Allen-Bradley
Module Type:Discrete Output
Outputs:16
Operating Voltage:5-265 Volt AC or 5-125 Volts DC
No. of groups:2
Output Types:N.O. Relay Contact
Input Voltage:Not applicable
Output Frequency:Not applicable
Backplane current consumption:0.270 A
Voltage Range:10-50 Volts DC
Sink Outputs:16
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95% relative humidity non-condensing
Enclosure:Open Type
Mounting:Chassis
Current Rating:Backplane: 0.28 A, Continuous Current Per Output: 0.25 A At 60 DEG C, Continuous Current Per Module: 4 A At 60 DEG C
On-State Voltage Drop:Not specified
Off-State Output Leakage:1 MA
Load:1 MA

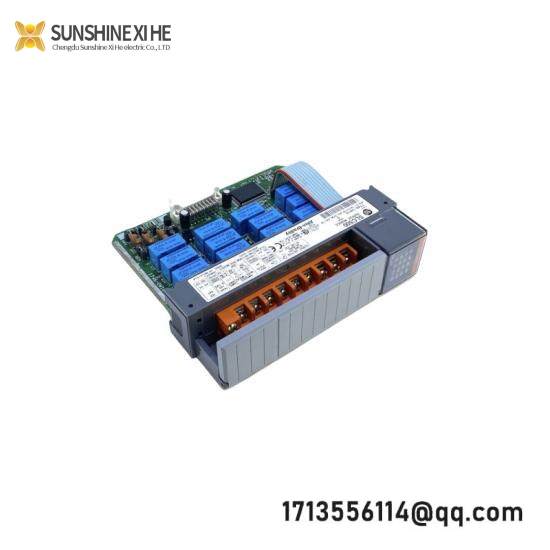

The AB 1746OW16 Digital Output Module from Allen-Bradley is engineered to deliver unparalleled performance in industrial control applications. This high-quality module is specifically designed for precision control, ensuring reliability and efficiency in your automation systems.
Featuring 16 digital output channels, it supports a wide range of input voltages and provides a flexible output voltage range from 10 to 50 VDC. The low on-state voltage drop ensures minimal power consumption, while the controlled leakage current prevents unwanted electrical fluctuations.
Equipped with advanced isolation technology, this module ensures secure communication circuits and robust backplane connections, guaranteeing uninterrupted operation even under challenging environmental conditions. Its open-type enclosure facilitates easy installation and maintenance, making it an ideal choice for industrial environments.
With a temperature rating of 0-60°C and compatibility with 5%-95% humidity levels, the AB 1746OW16 is built to withstand harsh industrial settings. The chassis mounting method allows for seamless integration into existing systems, enhancing system reliability and reducing downtime.
Engineered by Allen-Bradley, a leading name in industrial automation, this module boasts a comprehensive set of features tailored for optimal performance. Whether you’re upgrading existing infrastructure or building new systems, the AB 1746OW16 Digital Output Module is your trusted partner in delivering dependable and efficient control solutions.
