Manufacturer:Allen Bradley
Model Number:1756-HSC
Type:High Speed Counter Module
Communication:ControlLogix Communication Module
Power Supply:3 MA at 24 VDC
Mounting:Chassis
Communication Speed:10/100 MBPS
Communication Protocol:Ethernet/IP Bridge
Enclosure:Open Type
Connection:Compliant Shielded or Unshielded Twisted Pair Cables
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface:Ethernet
USB Port:Not Available

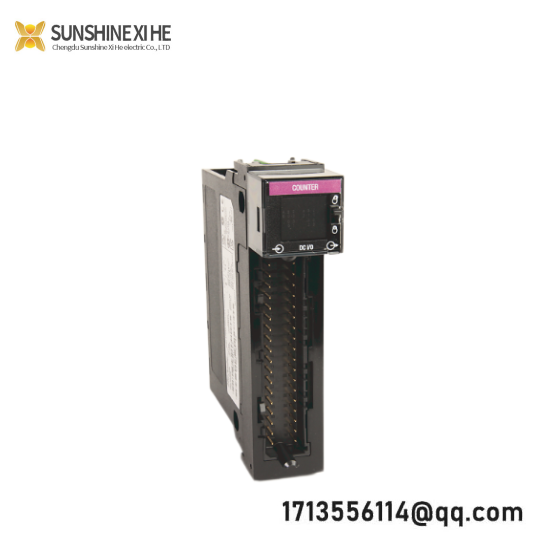

The Allen Bradley 1756-HSC High Speed Counter Module is designed for applications requiring precise measurement and timing of high-frequency events. Its robust construction ensures reliability in harsh industrial environments.
This module supports both ControlLogix Ethernet/IP protocols for seamless integration into existing automation systems, offering high-speed data transmission rates of up to 10/100 Mbps.
With an open enclosure design, the 1756-HSC is versatile for mounting options and ensures easy access for maintenance and diagnostics.
Equipped with advanced signal processing capabilities, the module accurately counts and measures events at high speeds, minimizing errors and ensuring precise control over machinery and processes.
The 1756-HSC is compatible with shielded or unshielded twisted pair cables, adhering to IEEE 802.3 standards, which ensures reliable communication even under noisy industrial conditions.
Its operating temperature range of 0 to 60°C and ability to withstand vibrations and shocks make it suitable for use in various industries including manufacturing, packaging, and material handling.
