Model Type:ControlLogix
Model Number:1756-OF8H
Manufacturer:Allen-Bradley
Weight:1.00 lbs
Interface:HART
Channels:8
Output Type:Analog
Input Type:Differential Voltage or Current
Data Formats:Multiple
Input Ranges:Current and Voltage
Module Filter:Available
Real Time Sampling:Yes
Under Range/Over Range Detection:Yes
Process Alarms:Yes
Rate Alarm:Yes
Wire-off Detection:Yes
Communication Protocol:Highway Addressable Remote Transducer (HART)

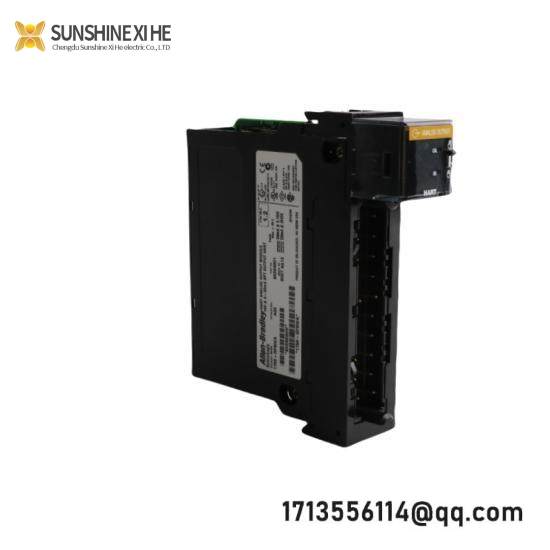

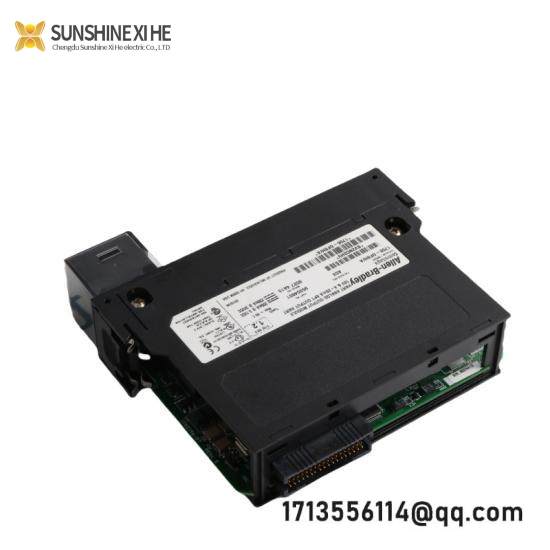

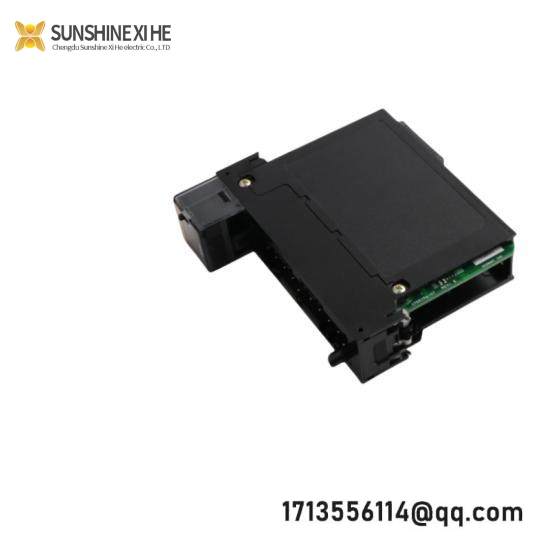

The Allen-Bradley 1756-OF8H ControlLogix 8-Point Analog Input/HART Module is a high-performance solution designed for seamless integration into complex industrial control systems. Its versatile 8-channel design allows for differential voltage or current inputs, making it adaptable to various applications.
Equipped with an advanced HART interface, this module ensures bidirectional communication with intelligent devices, providing detailed diagnostics and real-time data transfer. It supports multiple data formats and offers a wide range of current and voltage input options, catering to diverse system requirements.
The integrated module filter enhances signal integrity, reducing noise and interference for reliable operation. The real-time sampling feature ensures accurate and timely data acquisition, while the under-range and over-range detection capabilities prevent system malfunctions and improve safety.
With process alarms and rate alarm functionalities, the 1756-OF8H provides proactive monitoring and early warning against potential issues. The wire-off detection feature ensures continuous operation by promptly identifying and addressing disconnections or open circuits.
Facilitating easy installation and maintenance, the module is compatible with a ControlLogix chassis, requiring either a removable terminal block (RTB) or a wiring interface module (IFM) for field-side connections. This robust and feature-rich module is an essential component for optimizing industrial automation processes.
