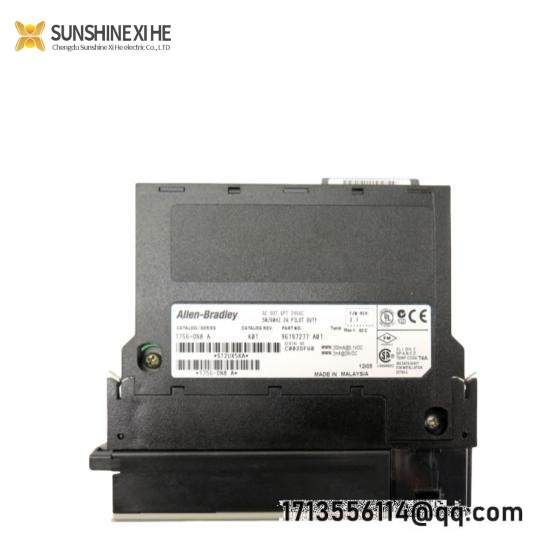

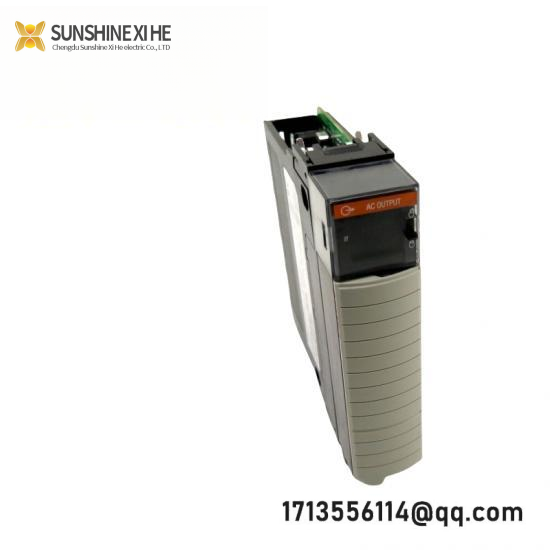

Model Type:ControlLogix Digital Output Module
Model Number:1756-ON8
Manufacturer:Allen-Bradley
Weight:0.5 lbs
Number of Points:8
Output Type:Digital
Voltage Rating:24VDC
Operating Temperature:-40°F to 185°F (-40°C to 85°C)
Communication Interface:ControlNet, Ethernet
Fault Detection:Point-level output fault state
Diagnostics:Field-side diagnostics
Reliability Rating:UL/cUL Class 1, Division 2, Group A-D, T6 Hazardous Location
Compliance:IEC 61131-3, EN 61131-2
The Allen-Bradley 1756-ON8 ControlLogix Digital Output Module is a versatile component that provides reliable and accurate control signals in industrial automation systems. Designed for seamless integration into the ControlLogix platform, this module supports ControlNet™ communication for efficient data exchange.
Equipped with 8 solid-state outputs, the module ensures high performance and durability, ideal for demanding applications where precision and reliability are paramount. Each output features two Form C contacts capable of Normally Open configurations, providing flexibility for various circuit requirements.
Operated within an ambient temperature range of -40°C to 85°C and supporting humidity up to 95% non-condensing, the module is engineered to withstand harsh industrial environments without compromising performance. This makes it suitable for a wide array of applications, from manufacturing lines to process control systems.
The Allen-Bradley 1756-ON8 offers a compact design that fits seamlessly into the ControlLogix chassis, making it easy to integrate into existing systems. Its lightweight structure (0.5 lbs) ensures minimal impact on system load, facilitating smooth operation and energy efficiency.
With its robust construction and advanced communication capabilities, the Allen-Bradley 1756-ON8 ControlLogix Digital Output Module is an indispensable tool for engineers seeking to enhance the precision and reliability of their automation systems. Whether you’re working on new installations or upgrading existing setups, this module delivers exceptional performance backed by Allen-Bradley’s commitment to quality and innovation.
