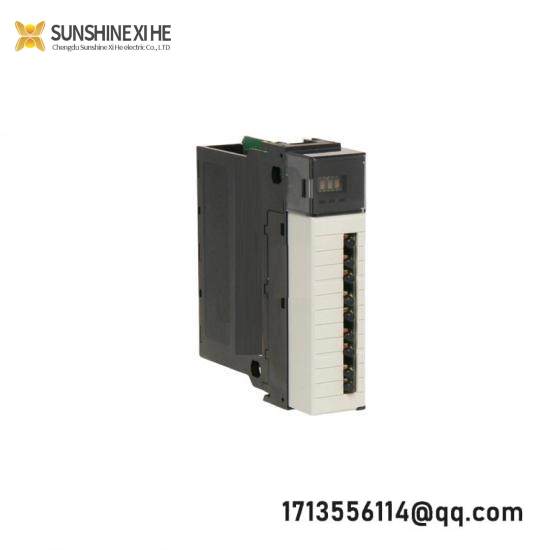

Allen-Bradley 1756-SIM ControlLogix Digital & Analog I/O Simulator Module

Brand:Allen-Bradley

Model:1756-SIM

Module Type:ControlLogix Digital & Analog I/O Simulator

Power Supply:12V DC

Operating Current:Less than 100mA

Operating Voltage:5-24V DC

Input Range:-10V to +10V DC

Output Range:0-10V DC or 4-20mA DC

Communication Interface:Ethernet/IP

Number of Inputs/Outputs:16 each

Environmental Conditions:Operating Temp: 0°C to 55°C, Storage Temp: -40°C to 85°C

Mounting:Panel

Enclosure:IP20

Connection:RJ45

    The 1756-SIM module is a valuable asset for engineers and technicians working on ControlLogix-based systems. Its compact design and high compatibility ensure seamless integration into various industrial environments.

    Featuring advanced simulation capabilities, this module accurately replicates the behavior of real-world inputs and outputs, allowing for thorough testing under controlled conditions without the need for physical prototypes.

    With its support for both digital and analog signals, the 1756-SIM ensures comprehensive testing coverage, making it suitable for a wide range of applications from simple control loops to complex multi-channel scenarios.

    Equipped with a DB9 serial interface, the module facilitates easy connection to a variety of test equipment and software tools, enhancing its utility in different stages of the development lifecycle, including design, testing, and debugging.

    Designed to withstand the rigors of industrial use, the 1756-SIM operates within a broad temperature range (-20°C to +60°C), ensuring reliable performance across different environments. Its low power consumption makes it energy-efficient, reducing operational costs.
