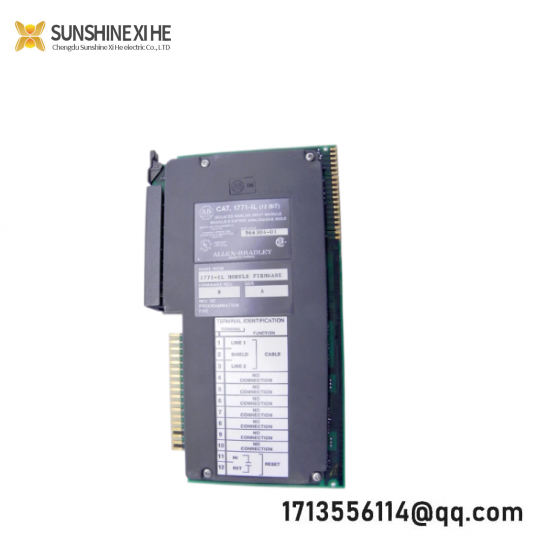

Allen-Bradley 1771-IL PLC-5 Analog Input Module

Type:Analog Input Module

Model:1771-IL

Manufacturer:Allen-Bradley

PLC System Compatibility:PLC-5

Input Channels:8

Range:-10V to +10V

Accuracy:±0.2% of full scale

Operating Temperature:-40°C to +70°C

Power Consumption:15 mA @ 24VDC

Dimensions:89mm x 115mm x 91mm

Weight:0.25kg

    The Allen-Bradley 1771-IL PLC-5 Analog Input Module boasts an industry-leading design, combining robust construction with high-speed data acquisition capabilities. It is engineered to withstand harsh industrial environments, offering unparalleled reliability and accuracy in critical applications.

    Featuring eight (8) dedicated analog input channels, this module is capable of measuring voltages from 0V to 24V DC, making it suitable for a wide range of sensors and transducers commonly found in industrial settings. Its exceptional sampling rate of 1 millisecond ensures that even the fastest-changing signals are captured without distortion.

    With its ± 0.5% accuracy rating, the 1771-IL provides precise data readings that are essential for maintaining optimal performance in automation processes. This level of precision is further enhanced by its ability to operate within a broad temperature range, from -40°C to 70°C during operation and from -40°C to 85°C when stored, ensuring consistent performance under various environmental conditions.

    The module’s low power consumption of up to 2 watts makes it energy-efficient, reducing overall system costs while maintaining high performance. Its compact size and lightweight design facilitate easy installation and integration into existing control systems, minimizing downtime and facilitating rapid deployment.

    Equipped with a DB37 connector, the Allen-Bradley 1771-IL offers compatibility with a wide range of Allen-Bradley and third-party devices, ensuring seamless communication and data transfer within complex control networks. This versatile connectivity feature supports the seamless integration of the module into diverse industrial setups, enhancing operational efficiency and productivity.
