Model Type:FLEX™ I/O
Model Number:1797
Channels:8
Input Voltage (Uo):<23.7 V
Input Current (Io):<93.5 mA
Output Power (Po):<555 mW
Voltage Rating:Functional Data Range >15 V at 22 mA, >21.5 V at 0 mA
Power Consumption:7.5 W (Module field-side)
Power Supply:Ui <9.5 VDC, Ii <1 A
Enclosure:IP20
Connection Cable:12 AWG Stranded Copper Wire
Mounting:DIN Rail, Panel
Length:3.7 IN
Width:1.5 IN

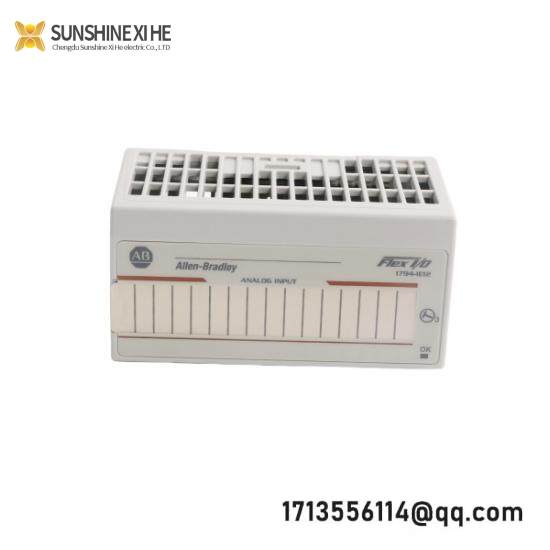

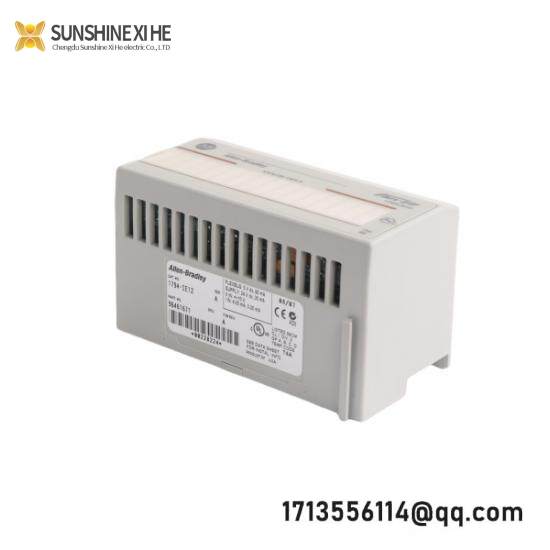

The 1794-IE12 Analog Input Module is a cornerstone in industrial automation, designed for seamless integration into complex control systems. It excels in delivering real-time, high-precision data collection, making it ideal for applications where accuracy is paramount. With its wide input range of -10V to +10V, this module can adapt to a variety of industrial settings.
Featuring a sampling rate of 200 samples per second, the 1794-IE12 ensures quick and responsive data acquisition, critical for dynamic process monitoring and control. Its ±0.05% accuracy across the entire range guarantees reliable performance even under fluctuating conditions.
Engineered for robust operation within a temperature range of -20°C to +85°C, this module is suitable for harsh industrial environments. It supports DC 24V power supply, ensuring compatibility with a wide array of power sources.
The module offers versatile communication options through RS-232 and RS-485 interfaces, facilitating seamless data transfer and connectivity with other devices in the system. Its terminal connection type simplifies installation and maintenance, allowing for quick setup without the need for complex wiring.
Designed for panel mounting, the compact size of the 1794-IE12 ensures efficient use of space on the control panel. Its sturdy construction and reliable performance make it a preferred choice for engineers seeking a dependable solution for their data acquisition needs.
