Input Voltage:100-240VAC rms, 1-Phase
Frequency Range:47-63 Hz
Continuous Output Power:1kW
Continuous Output Current:5A
Intermittent Output Current:15A
Encoder Compatibility:Embedded multi-turn absolute encoders
Communication Interface:RS232 and RS485
Dimensions:7.8 x 5.68 x 2.86 in (198.12 x 144.27 x 72.64 mm)
Weight:Approximately 3.5 lbs
Compliance:Not compliant with EU RoHS directive

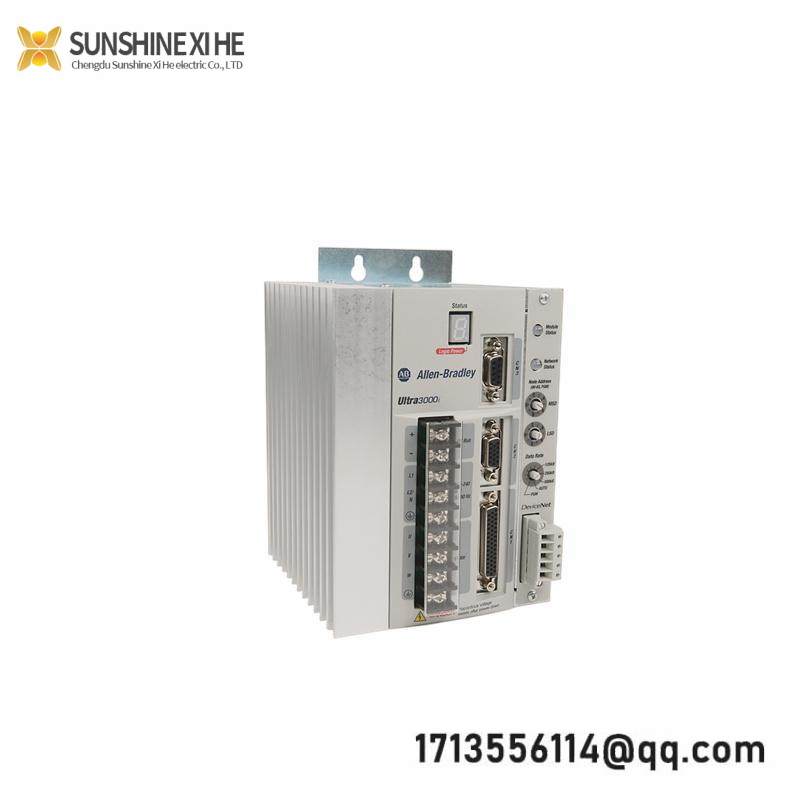

The Allen-Bradley 2098-DSD-010X-DN boasts a compact design, integrating advanced digital control algorithms for superior performance in motion control applications.
Equipped with eight selectable general-purpose inputs and four selectable general-purpose outputs, this drive offers flexibility for a wide range of control scenarios.
With its RS232 and RS485 communication capabilities, it seamlessly integrates into existing network infrastructures, enhancing connectivity and data exchange.
The drive’s capability to maintain actuator position upon power loss, thanks to the option for external logic power supply, ensures reliability in critical operations.
Engineered with precision and efficiency in mind, the 2098-DSD-010X-DN is ideal for applications requiring high accuracy and responsiveness, making it a valuable asset in the modern industrial automation landscape.
