Model Number:2098-DSD-020X
Brand:Allen-Bradley
Power Rating:1 kW
Continuous Output Current:1 A
Intermittent Output Current:30 A
Operating Voltage Range:100-240VAC
Frequency Range:47-63 Hz
Dimensions:7.8 x 5.68 x 3.89 in (198.12 x 144.27 x 98.1 mm)
Weight:2.1 kg (4.6 lbs)
Energy Absorption Capability:125 Joules @ 115VAC, 51 Joules @ 230VAC
Bus Capacitance:1880 μF
Bus Overvoltage:400 Vdc
Input Requirements:Nominal 18 A rms, 100 A for series A and B, 20 A for series C at 230VAC (0-pk)

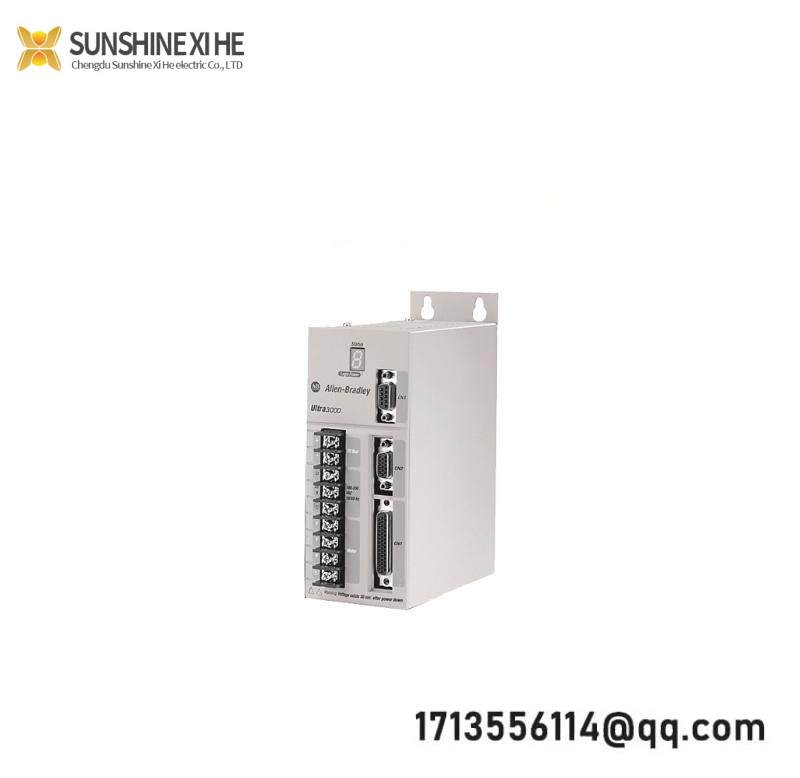

The Allen-Bradley 2098-DSD-020X is an advanced digital servo drive designed for applications requiring precise and reliable motion control. Its compact design and robust performance make it suitable for a wide range of industrial settings.
Featuring an input voltage range of 100-240VAC and a frequency of 47-63 Hz, this drive is compatible with various power sources and operates efficiently in different environments. It delivers a continuous output power of 1kW, ensuring high-performance operation under demanding conditions.
Equipped with a nominal input current requirement of 18 A, RMS, and supporting a series of fuse types including FNQ-R-20 Class CC and LPJ-20SP Class J, the 2098-DSD-020X ensures safety and reliability during operation.
With a bus overvoltage capability of 400 Vdc, the drive is designed to withstand transient voltage spikes without compromising performance. It also boasts an energy absorption capacity of 125 Joules at 115VAC and 51 Joules at 230VAC input, providing protection against sudden power surges.
This servo drive is specifically engineered to interface seamlessly with servo motors, such as those from the Allen-Bradley Kinetix series, enhancing efficiency and accuracy in motion control tasks. It supports advanced indexing capabilities, enabling the storage of pre-configured motor movements in its memory for quick selection based on specific load requirements.
