Model Type:Redundant Bridge Module
Model Number:1756-CN2R/B
Manufacturer:Allen-Bradley
Module Type:ControlNet
Communication Protocol:ControlNet
Redundancy:Yes
Number of Channels:Redundant
Enclosure Type:Open Type
Temperature Range:32 – 140 DEG F
RFI Suppression:Radiated: 10 V/M With 1 KHZ Sine-Wave 80% AM From 80 – 2000 MHZ
Operating Voltage:5.1 VDC
Current Rating:Drawn: 1.16 A At 5.1 VDC, 3.4 MA At 24 VDC
Mounting:Chassis
Display:4 Character Alpha/Numeric
Protocol Compliance:Compliant with Common Industrial Protocol (CIP)

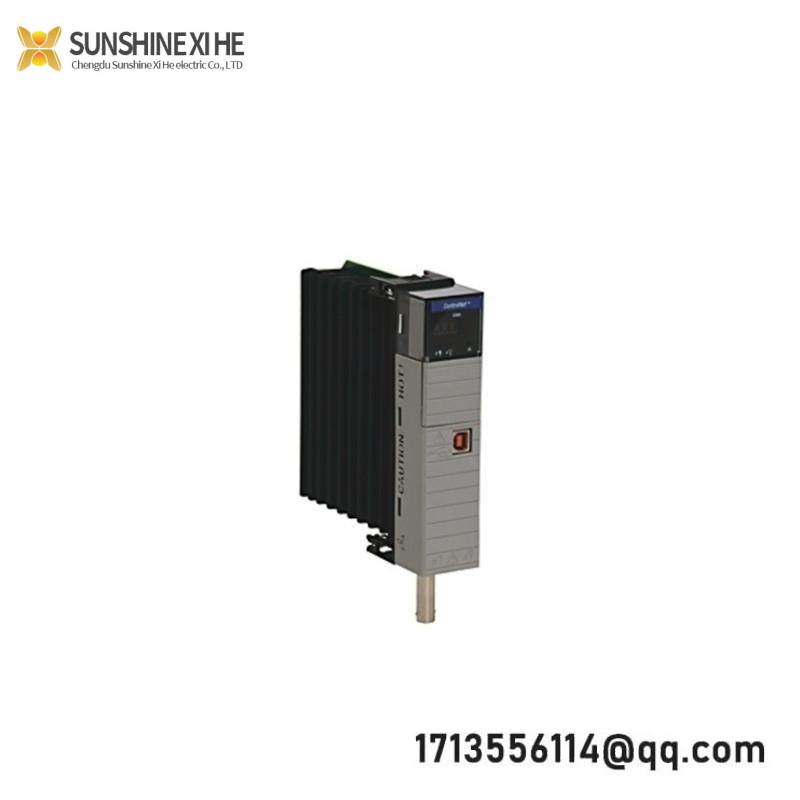

The AB 1756-CN2R/B ControlNet Redundant Bridge Module is engineered to provide unparalleled network reliability for industrial automation applications. It offers dual connections for ControlNet networks, ensuring that operations remain uninterrupted even under network failures.
Featuring an IP20 enclosure, this module is designed for robust performance in various industrial environments, from manufacturing floors to assembly lines, guaranteeing long-term reliability without compromising on functionality.
Utilizing advanced communication protocols, including ControlNet and CIP, the module seamlessly integrates with Allen-Bradley’s ControlLogix Controllers, allowing for enhanced data exchange and efficient control over machinery and processes.
With its ability to handle up to 10 Mbps communication rates, the AB 1756-CN2R/B ensures fast and reliable data transfer, crucial for real-time monitoring and control in complex industrial settings.
This module is built to withstand wide temperature ranges (-20°C to 70°C) and operates in non-condensing environments, ensuring stable performance throughout the year, regardless of the operational conditions.
