Ladder-logic Programming:Yes
Structured-Text Programming:Yes
File Handling:Included
Sequencer Instruction Set:Available
Diagnostic Instructions:Included
Shift Register Instructions:Provided
Immediate I/O Instructions:Enabled
Program Control Instructions:Standard
Multiple Main Control Programs:For task segregation
Processor Input Interrupts:Supported
Global Status Flags:Programmable
Fault Response Programmability:Before system failure
Timed Interrupt Routine:For specific information
Protected Memory Selectable:By word
Maximum Forcible:512-3072
Amperage Rating (Backplane):5 VDC, 500 MA
Amperage Rating (DeviceNet):24 VDC, 90 MA
Mounting Type:Chassis
Communication Speed:125 KBPS
Length:1-23/64 IN
Width:5-1/8 IN
Height:5-11/16 IN
Enclosure Type:Open
RFI Suppression:Radiated: 10 V/M, Conducted: 10 VRMS
Temperature Rating:32 – 140 DEG F
Environmental Conditions:Relative Humidity: 5 – 95%

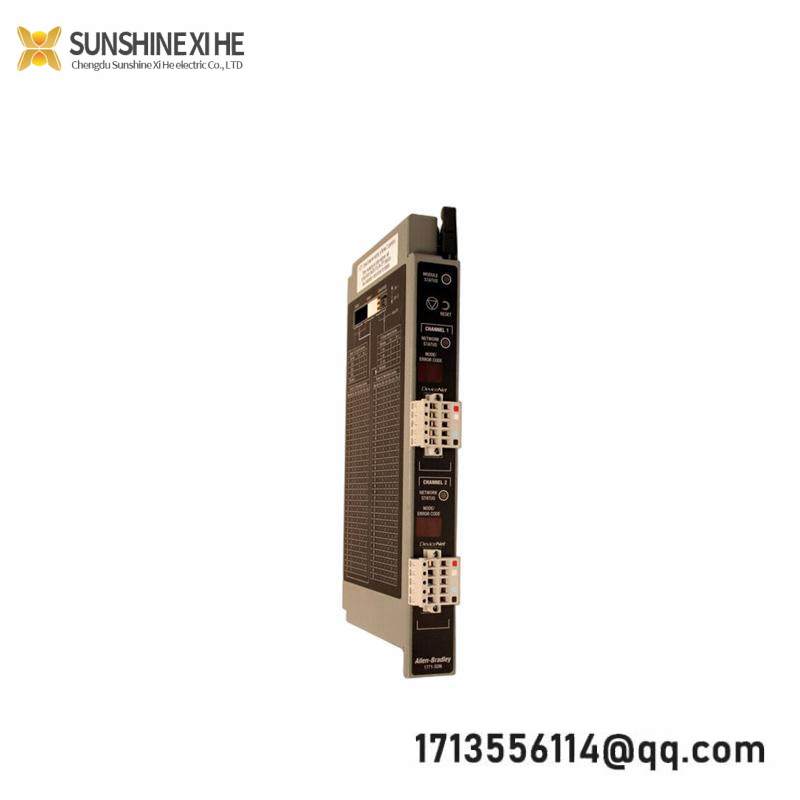

The Allen-Bradley AB 1771-SDN Scanner Module is a versatile component designed for seamless integration into industrial automation systems. It excels in providing real-time data acquisition, crucial for enhancing operational efficiency.
With its ladder-logic and structured-text programming capabilities, this scanner module offers advanced instruction sets including file handling, sequencer, diagnostic, shift register, immediate I/O, and program control instructions, catering to complex automation needs.
Equipped with multiple main control programs, it allows for the segregation of control tasks, ensuring that different processes can operate concurrently without interference, leading to increased productivity.
Processor input interrupts and global status flags are integrated for enhanced monitoring and control, enabling quick responses to system changes or faults before they impact operations significantly.
The programmable fault response feature ensures that the system can react promptly to faults, preventing unnecessary downtime and minimizing potential losses. Additionally, the timed interrupt routine facilitates the examination of specific information at predefined intervals, optimizing data collection and processing.
