Weight:5.1 pounds (2.31 kilograms)
Power Connections:Various for multi-axis systems
Connectivity Interfaces:[“SERCOS”,”EtherNet/IP”]
Short-circuit Current Rating:200,000 Amps symmetrical
Data Retention:20 years
Input Output Interfaces:230 Volts rated digital
Configuration Settings:Supports multiple settings
Operating Frequency:0 to 400 Hertz
Product Type:Integrated Axis Module

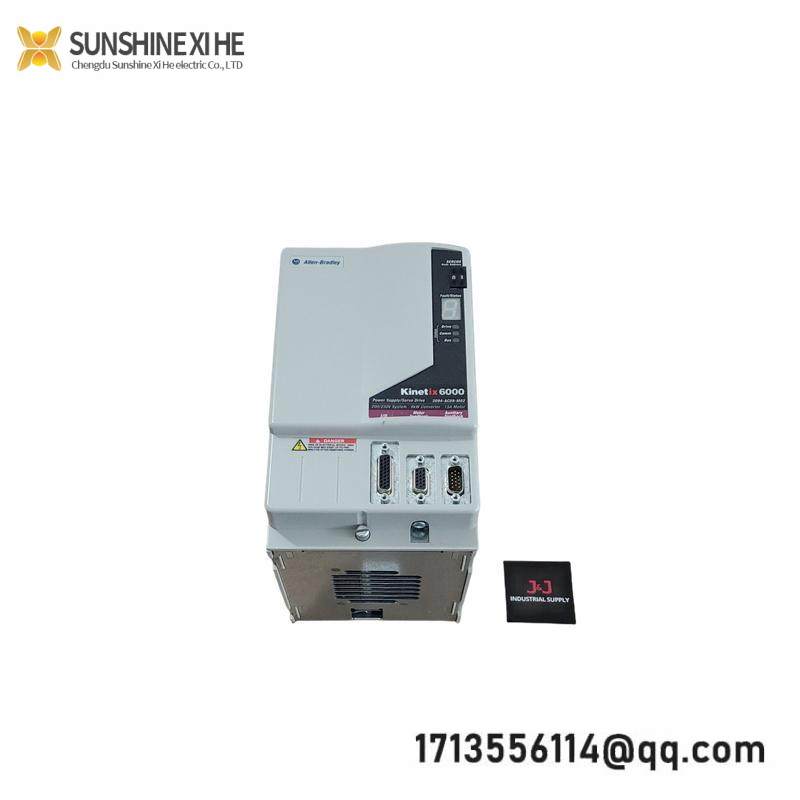

The Allen-Bradley 2094-AC09-M02 Integrated Axis Module is an essential element in the implementation of motion control systems, offering a comprehensive suite of field connections for seamless integration into multi-axis systems.
This module is designed to host a multitude of essential connections including Contactor enable (CED), DC bus/AC input power (IPD), Control power (CPD), Motor power (MP), Motor/resistive brake (BC), and I/O (IOD) connectors.
Featuring SERCOS and DPI connectivity, the 2094-AC09-M02 is capable of supporting a wide array of industrial applications, making it a versatile choice for both rotary servo motors and linear positioners.
With a short-circuit current rating of 200,000 Amps symmetrical and a memory retention capacity of 20 years, this module ensures reliability and longevity in demanding environments.
Equipped with 230 Volts rated digital input and output interfaces, the module seamlessly integrates with host PCs and PLC controllers, enhancing operational efficiency and flexibility.
The 2094-AC09-M02 is a testament to Allen-Bradley’s commitment to innovation and performance, providing a robust solution for complex machinery and automation needs.
