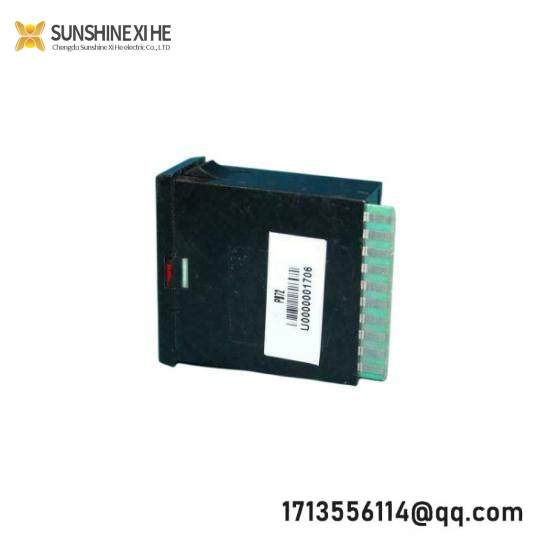

ASAHI KEIKI AP-102-13-11 Micro DC Signal Isolation Transmitter

Model:AP-102-13-11

Terminal Type:Micro

Signal Source:DC

Isolation Type:Optical

Input Range:-20 to +60V

Output Range:0 to 10V, 4 to 20mA

Accuracy:±0.1%

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Power Consumption:1W max

Supply Voltage:DC 9 to 36V

Dimensions (WxHxD):32mm x 54mm x 33mm

Weight:45g

    The Asahi Keiki AP-102-13-11 Terminal type micro DC signal isolation transmitter is designed for applications requiring high-level signal isolation and noise suppression in harsh industrial environments. Its compact design allows for easy integration into existing systems without compromising on performance.

    Featuring a robust construction, this transmitter ensures long-term reliability, making it suitable for applications where downtime due to equipment failure cannot be tolerated. It supports both 4-20mA and 0-10V analog outputs, providing flexibility for various automation setups.

    With an isolation voltage of 1000V AC, it provides an effective barrier against electrical interference and ground loops, ensuring accurate and uninterrupted signal transmission. The transmitter’s accuracy, ±0.1% Full Scale, guarantees precise data representation, essential for critical control processes.

    The transmitter operates within a wide temperature range (-20°C to +70°C) and can withstand storage temperatures from -40°C to +85°C, making it ideal for diverse industrial settings. It consumes a maximum power of 1W, ensuring efficient energy use.

    For installation, the AP-102-13-11 requires minimal setup time due to its straightforward configuration options and compatibility with industry-standard protocols. Its compact size (85mm x 60mm x 20mm) and lightweight (90g) make it easy to integrate into confined spaces.
