Counter Resolution:32 bit
Output Voltage Range:+5 V and +15 V selectable with jumper, 24 V looped through
Output Voltage:±10 V
Output Current:Max. ±2 mA
Positioning Accuracy:32-bit resolution for enhanced precision
Power Supply:5V / 15V / 24V encoder supply
Signal Interfaces:2x INC/SSI, 1MHz, RS422 level, INC A, A/B/N, position, gate time, period, velocity
Digital Inputs:2x Out ±10V, 14bit, 0.025 %, 40µs, synchronized, PreSYNC, 4x DI 24V, trigger, homing

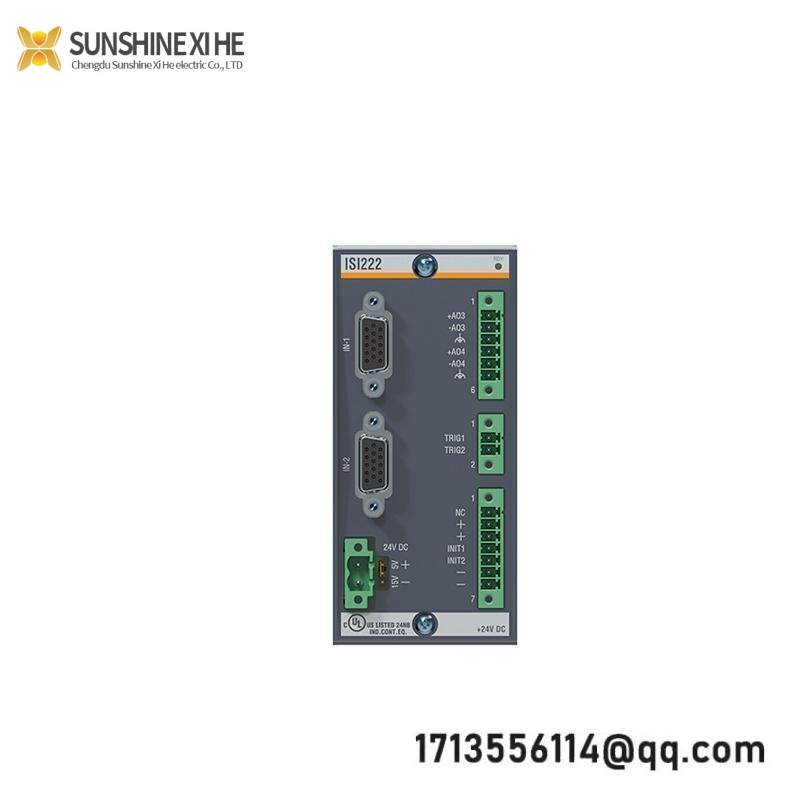

Introducing the BACHMANN ISI222 Encoder Interface Module, a cornerstone of precision control in industrial automation. This module is designed to enhance the performance of your systems by providing unmatched accuracy and reliability.
Featuring a high-resolution 32-bit counter, the ISI222 allows for precise measurement and control, essential for demanding applications. Its versatile output voltage selection (from +5 V to +15 V) ensures compatibility with various system configurations, while the 24 V loop-through feature supports advanced integration scenarios.
With support for ±10 V outputs, the module ensures stable power delivery for your critical components. The inclusion of two digital outputs provides a wide range of configurable options, enabling you to tailor the module to your specific needs. The 1 MHz application frequency ensures smooth operation across various operational speeds.
The ISI222 Encoder Interface Module comes equipped with two incremental counters (A, A/B/N), offering both position feedback and control. The RS422 level communication interface facilitates seamless data exchange with other components in your system, ensuring reliable and efficient operation.
For added convenience, the module supports digital inputs for triggering and homing, simplifying setup and maintenance processes. Whether you’re looking to upgrade an existing system or build a new one, the BACHMANN ISI222 Encoder Interface Module is the perfect choice for achieving superior performance and reliability in your industrial automation projects.
