Number of Inputs:8
Input Type:Resistance Temperature Detectors (RTDs)
Channel Isolation:Yes
Temperature Range:-200°C to +850°C
Operating Voltage:DC 24V
Power Consumption:≤50mW
Accuracy:±0.1% of reading + 2LSB
Operating Temperature:-40°C to +70°C
Storage Temperature:-55°C to +85°C
Environmental Conditions:Humidity ≤95% non-condensing
Dimensions:110mm x 64mm x 33mm
Weight:0.15kg

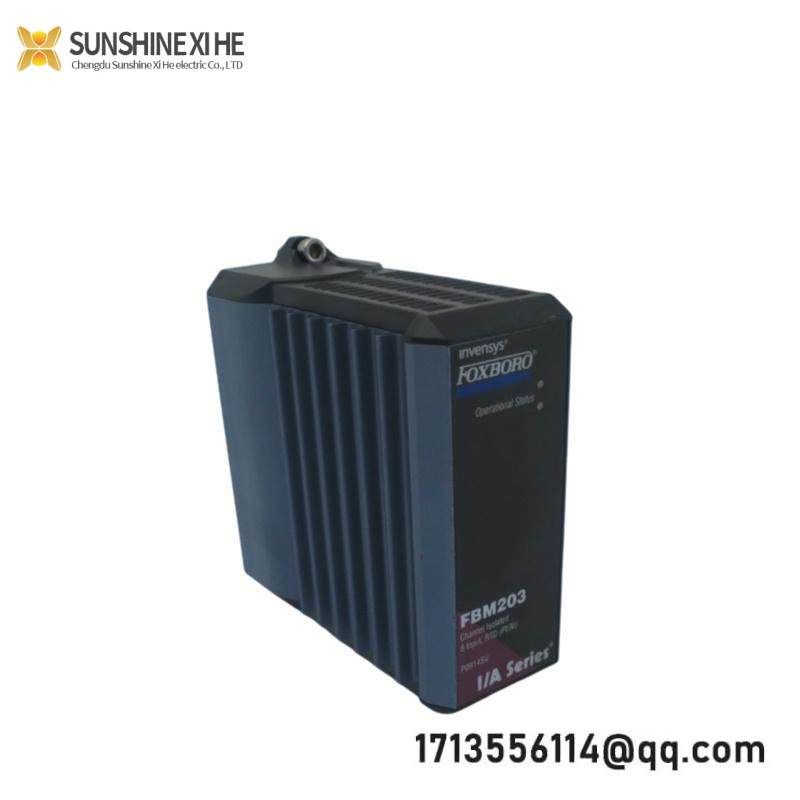

The FOXBORO FBM203 is engineered for reliability and accuracy in industrial settings. This module boasts eight isolated channels, ensuring minimal interference between measurements.
Designed specifically for resistance temperature detector (RTD) sensors, it supports various wire types including Pt100, Cu50, and Cu100, making it versatile for different industrial applications.
Operated with a stable DC 24V power supply, it ensures consistent performance even in challenging environments. With a current consumption of ≤25mA, it optimizes energy usage.
The module features a signal output of 4-20mA, which is compatible with most industrial control systems. This wide range allows for seamless integration and data transmission.
Adaptable to varying environmental conditions, the FBM203 is equipped to withstand temperatures from -20°C to +60°C without compromising its functionality. Its humidity resistance ensures durability in humid settings.
