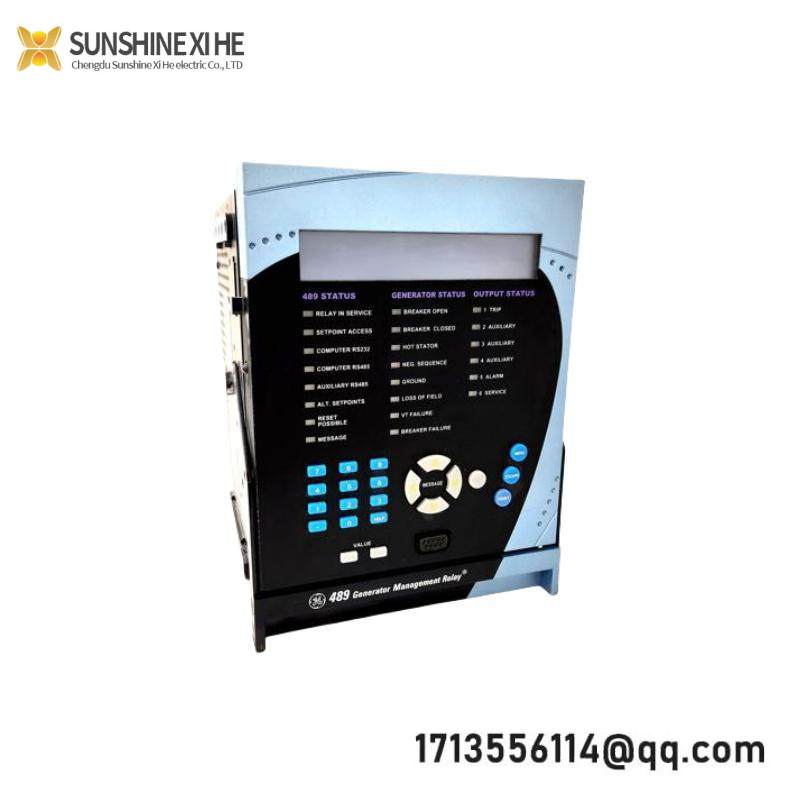

GE 489-P5-HI-A20-E: Precision Control Module for Industrial Applications

Analog Current Inputs:±1% of full scale

Fuse Model:215-02.5

Ingress Protection:IP40 front, IP10 back

Maximum Altitude:2000 m

Overvoltage Category:II

RTD Inputs Isolation:36 Vpk (isolated with analog inputs and outputs)

Sinusoidal Vibration Test Level:Class 1

Underfrequency Curve Shapes:1 level alarm, two level trip definite time

Voltage Phase Reversal Configuration:ACB or ABC Phase Rotation

    The GE 489-P5-HI-A20-E is engineered with advanced digital processing capabilities, ensuring precise monitoring and protection for generators in demanding industrial environments.

    Featuring an isolation rating of 36 Vpk for RTD inputs, it safeguards against voltage fluctuations and ensures reliable operation under various environmental conditions.

    With its ability to withstand sinusoidal vibrations up to Class 1 standards, this relay is built to endure even the harshest industrial settings, maintaining system integrity.

    Equipped with a robust case design, the GE 489-P5-HI-A20-E is compatible with both front and rear ingress protection standards, providing enhanced security against dust and water ingress.

    Its versatile phase rotation feature allows for flexible integration into different power systems, ensuring compatibility across a wide range of industrial applications.
