Brand:General Electric
Model:DS3800NPPB
Type:Circuit Board
Series:Mark IV
Function:Turbine Control
Material:High-grade FR4 epoxy resin
Inductors:3 large, paired and unpaired
Capacitors:3 green, vertically arranged
Fuses:2 located on the side
Dimensions:L x W x H (mm): 150 x 100 x 25
Weight:0.3 kg
Operating Temperature Range:-40°C to +70°C

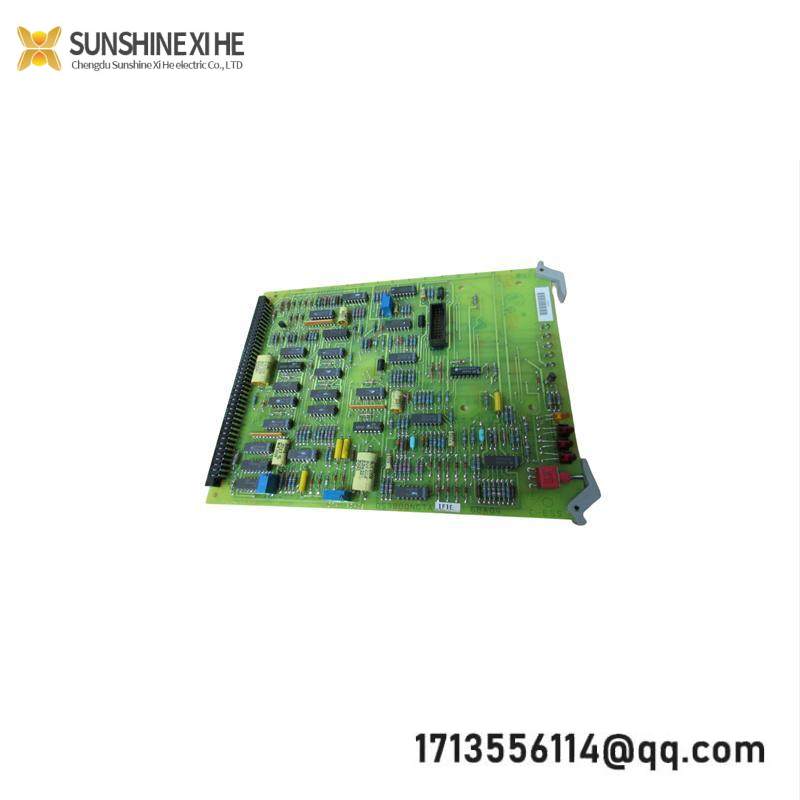

The GE DS3800NPPB1M1J is an indispensable piece of hardware in industrial control systems, specifically tailored for the demanding needs of gas and steam turbine operations.
This circuit board features a robust design with three large inductors strategically positioned across its surface. Two of these inductors are paired together, interconnected by wires along the bottom half of the board, while the remaining two stand independently at either end of the top half.
Surrounding the core components are five integrated circuits, each playing a vital role in the overall functionality of the system. The use of gold-plated jumpers indicates high-quality connections, essential for maintaining signal integrity and reliability.
Manufactured by General Electric, this board is a testament to the company’s commitment to innovation and quality in industrial automation. It is part of the renowned Speedtronic Mark IV system, recognized worldwide for its ability to enhance operational efficiency and minimize downtime.
Ideal for professionals in the field of power generation and industrial automation, the DS3800NPPB1M1J offers unparalleled performance and reliability, ensuring that turbines operate safely and efficiently under all conditions.
