Model:DS3800XAIB1E1E
Category:GE Boards & Turbine Control
Type:Mark IV DS3800
Technology:Circuit Board
Connectors:10 connector ports, 16 metal connector pins
Components:Over 100 distinct components, including resistors, capacitors, and diodes
Size:Dimensions: 250mm x 170mm
Power Supply:12V DC
LEDs:35 red LEDs for system monitoring
Mounting:12 screw mounts for secure installation
Compliance:Meets international safety and performance standards

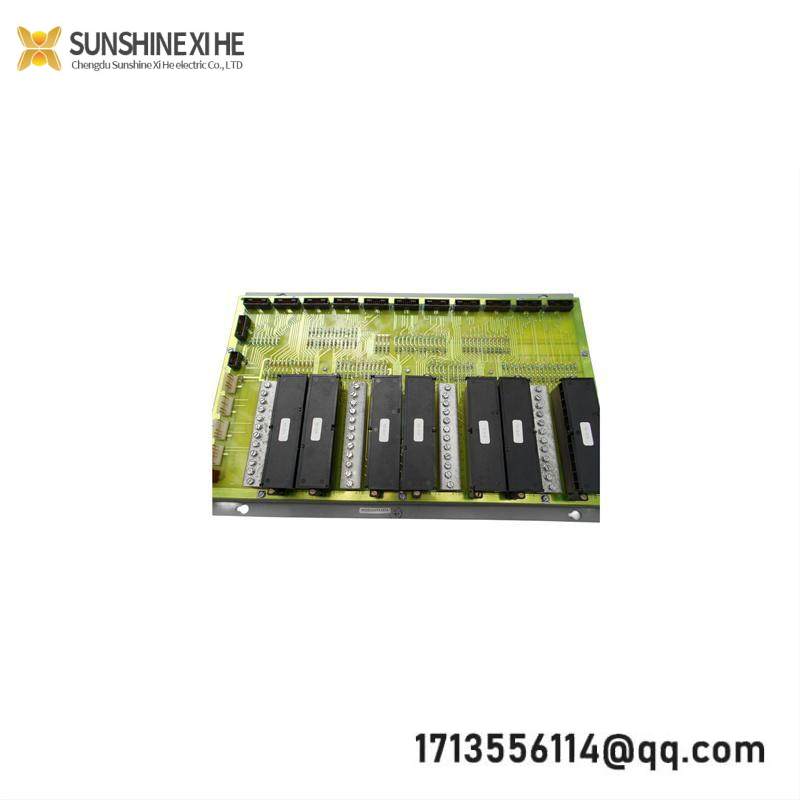

Engineered with precision and robustness, the GE DS3800XAIB1E1E Circuit Board offers unparalleled reliability in industrial control systems. This advanced board is meticulously designed to withstand harsh environments and deliver consistent performance.
Featuring a sophisticated layout with a series of large devices on one half, alongside numerous small components like banded resistors, capacitors, and diodes on the other, it ensures optimal electrical distribution and signal processing.
The circuit board is equipped with a total of ten (10) connector ports, complemented by ten (10) additional test points, facilitating easy connection and testing in industrial settings. The presence of various components ensures compatibility with diverse system requirements.
Crafted with materials known for their durability and conductivity, the DS3800XAIB1E1E board boasts a sleek design that seamlessly integrates into existing control systems, enhancing overall efficiency and system stability.
Equipped with over thirty-five red LEDs, this board provides visual feedback essential for monitoring system status in real-time, making maintenance and troubleshooting processes more streamlined and efficient.
AX Control prides itself on its knowledgeable and dedicated team, ready to assist you with all your industrial automation needs. Trust us to provide the highest quality replacement parts for your DS3800XAIB1E1E Circuit Board.
