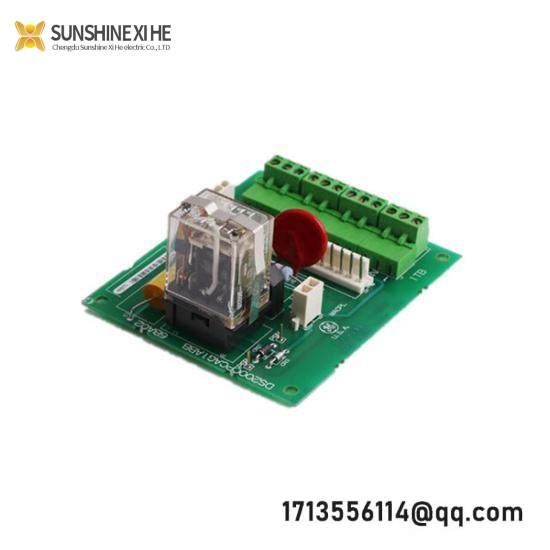

GE-FANUC DS200CPCAG1A Contact Pilot Board

Product Type:Contact Pilot Board

Model Number:DS200CPCAG1A

Manufactured By:GE Fanuc

Series:Mark V

Connector Types:[“12-pin”,”2-pin”]

Terminal Blocks:4

Maximum Signal Wires:12

Power Relay:24VDC Socket Power Relay

Board Dimensions:11 x 6 x 6.7 cm

Weight:0.12 kg

    The GE-FANUC DS200CPCAG1A Contact Pilot Board is engineered for high reliability and performance in demanding industrial environments. Its robust design ensures stable operation under a wide range of temperatures, making it suitable for use in various industrial settings from manufacturing floors to process control units.

    This contact pilot board features a single-pole single-throw (SPST) relay, providing a clear on-off switch function that can handle up to 2 amperes at 24 volts direct current. This capability makes it ideal for applications requiring precise control over electrical circuits and devices.

    With a compact size of 74mm x 55mm and a pin header connection type, this board is easy to integrate into existing control systems, facilitating quick installation and maintenance. The board is made from ruggedized industrial-grade materials, ensuring durability and longevity in harsh conditions.

    The DS200CPCAG1A is compatible with a wide range of control systems, enhancing its versatility and making it a versatile choice for system integration. It is designed to comply with international safety standards, including UL, CE, and FCC certifications, ensuring its safe usage across global markets.

    This contact pilot board comes with an operating voltage of 24V DC and a current rating of 1A, which is perfect for controlling small electrical loads. Its dry contact input type allows seamless integration with other control components, enabling efficient monitoring and control of industrial processes.
