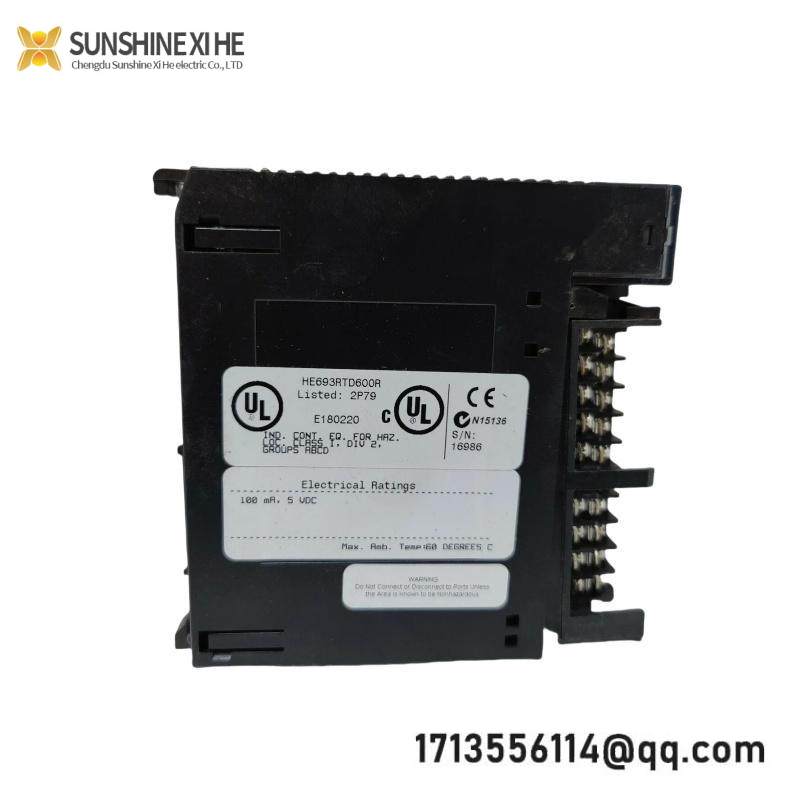

GE HE693RTD600R – High Precision RTD Input Module

Operating Voltage:5 to 30V DC

Current Consumption:Max 15mA per channel

Resolution:0.1°C

Temperature Range:-40°C to 75°C

Excitation Current:150 μA

Common Mode Rejection:>100 dB

Isolation Voltage:500Vrms @ 50/60Hz

Number of Channels:6 RTD Inputs

Material:High-grade metal housing with IP20 protection rating

    Integrating the latest technology, the GE HE693RTD600R is a high-resolution input module designed to withstand the most challenging industrial environments. Its robust design ensures continuous, accurate data acquisition without compromising performance.

    Featuring a versatile input type, this module supports RTD sensors for precise temperature measurement, crucial for applications requiring high accuracy and reliability.

    Equipped with a wide operating temperature range from -40°C to 75°C, the HE693RTD600R can handle extreme conditions found in various industries, from oil & gas to manufacturing and beyond.

    With its 150 μA excitation current, the module ensures minimal interference and maximizes sensitivity for more accurate sensor readings. The high isolation voltage further enhances safety and reliability in any application.

    The module’s common mode rejection ratio surpasses 100 dB, effectively filtering out noise and ensuring clean, disturbance-free signals. This feature is critical for maintaining high-quality data integrity.

    Crafted with precision, the HE693RTD600R boasts compact dimensions of 29.2 cm x 13 cm x 2.7 cm and weighs just 224 grams, making it easy to integrate into space-constrained systems without compromising performance.
