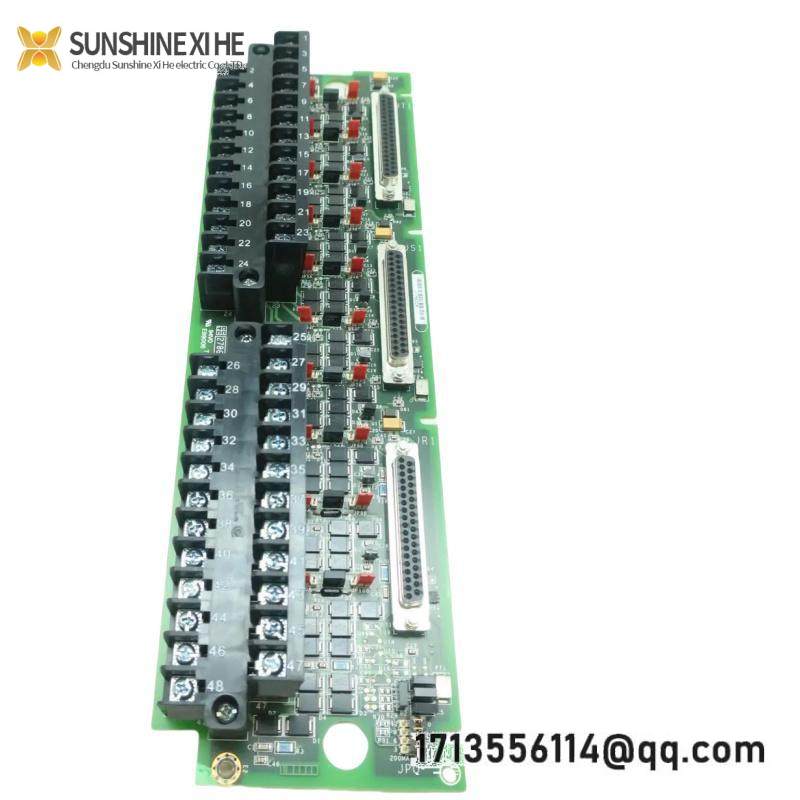

GE IS200TBAIH1CDC: Speedtronic Mark VI Analog Input Terminal Card, Precision Control for Industrial Applications

Model Number:IS200TBAIH1CDC

Series:Speedtronic Mark VI

Manufacturer:General Electric

Humidity Range:5-95% non-condensing

Functional Acronym:TBAI

Board Type:Analog I/O Termination

Termination Board:Yes

Compatibility:For use with Analog Input Board VAIC

Analog I/O Type:Barrier I/O

Input Types:AI and AO

Number of AI Channels:10

Number of AO Channels:2

System Application Type:Simplex or TMR

Input Span:1-5 V dc

Power Consumption:Less than 31 watts

Output Load:500 Ohms for 4-20 mA, 50 Ohms for 200 mA

Dimensions:To be provided by manufacturer

Weight:To be provided by manufacturer

    Engineered for seamless integration into the Speedtronic Mark VI system, this Analog Input Terminal Card (TBAI) from GE is a powerhouse for industrial automation. It supports 10 Analog Input (AI) channels and 2 Analog Output (AO) channels, providing precise control over industrial processes.

    With its robust barrier design, it ensures high isolation between inputs and outputs, safeguarding against electrical noise and interference. This makes it an ideal choice for environments where reliability and accuracy are paramount.

    Featuring a versatile input span of 1-5 V DC, it accommodates a wide range of sensors and measurement devices, enhancing its applicability across various industries. Its low power consumption ensures efficient operation without compromising on performance.

    The card’s capability to handle load resistances of 500 Ohms for 4-20 mA signals and 50 Ohms for 200 mA signals ensures compatibility with a broad spectrum of industrial devices, further expanding its utility.

    Capable of functioning in humid conditions up to 95% non-condensing, this terminal card demonstrates its adaptability to challenging industrial settings. It is a testament to GE‘s commitment to providing reliable solutions that withstand the rigors of real-world applications.
