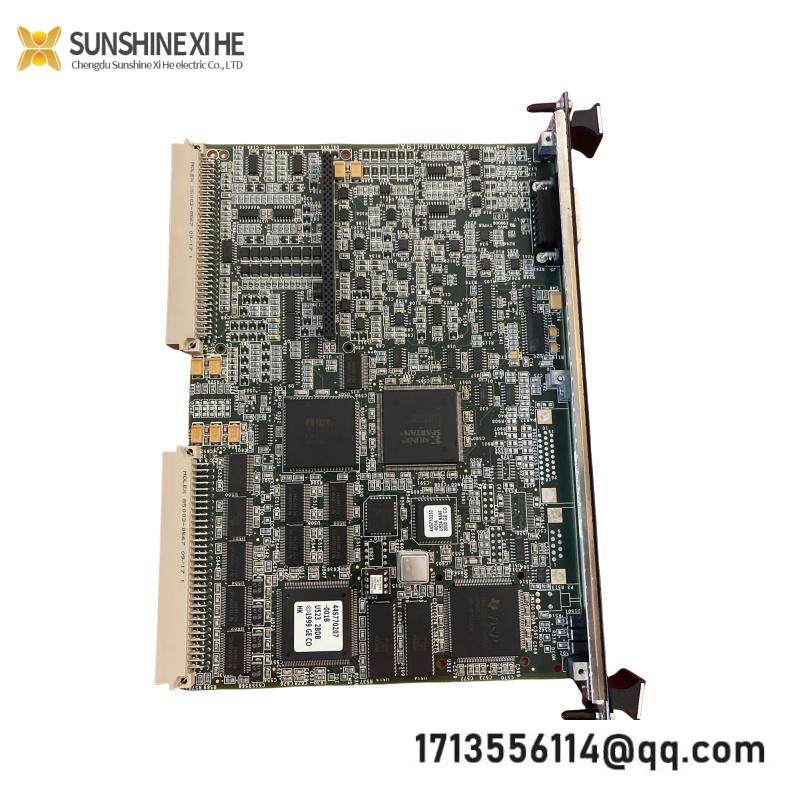

Board Number:IS200VTURH1BAC
Series:Mark VI
Manufacturer:General Electric Company
Functional Acronym/Abbreviation:VTUR
Model Type:Protection Board
Supported Functions:Induced shaft current/voltage monitoring, turbine speed measurement, overspeed trip relay control
MPU Pulse Rate Range:2 Hz to 20 kHz
MPU Pulse Rate Accuracy:0.05% of Reading
Number of Trip Solenoids:3
Contact Voltage Sensing:20 V dc for HI, 6 V dc for LO
Turbine Data Access:Via connected HMI for centralized control
TMR Architecture:Triple Modular Redundancy for enhanced reliability
Designed with GE‘s renowned TMR (Triple Modular Redundancy) architecture, the IS200VTURH1BAC ensures reliability and redundancy, safeguarding against single-point failures.
Equipped with a robust set of features, this board is optimized for high-speed turbine operations, offering unparalleled precision in control and monitoring.
Supports up to three overspeed trip relays, enabling seamless integration into complex industrial control environments, crucial for preventing catastrophic turbine events.
Equipped with nine magnetic relays interconnected with three trip solenoids, ensuring comprehensive coverage and response to varying operational scenarios.
Capable of monitoring eight Geiger-Mueller flame detectors, enhancing safety measures by promptly detecting potential issues in flame surveillance systems.
Manufactured using high-grade materials, this board is built to withstand harsh industrial environments, ensuring long-lasting performance and durability.
