Model Number:DS3800HPTK1H1K
Category:GE Boards & Turbine Control
Subcategory:Mark IV DS3800
Function:Gate Driver
Resistors:[{“Type”:”Long Grey”,”Resistance”:”18 Ohms ±5%”,”Power Rating”:”10 Watts”},{“Type”:”Color Banded”,”Current Capacity”:”Varies”}]
Diodes:13 various colored
Capacitors:[“Small”,”Very Large”]
Fuse:Large Glass
LED:Red
Potentiometer:Small Blue Variable Resistor

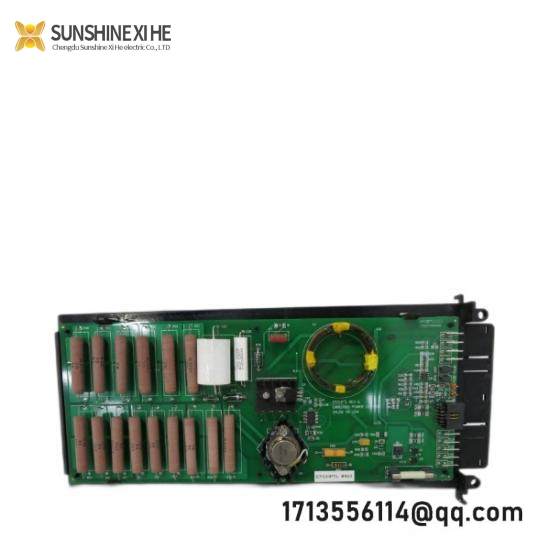

The DS3800HPTK GATE DRIVER CARD, a vital component for GE’s Mark IV Speedtronic series, ensures seamless integration into industrial control systems, enhancing efficiency and reliability.
With its robust design featuring a total of 15 long grey resistors rated at 18 Ohms ±5% and capable of handling up to 10 Watts, this card provides superior electrical control.
The inclusion of ten color-coded resistors allows for precise current management, ensuring optimal performance under various operating conditions.
Complementing these features are thirteen diodes and three capacitors, strategically placed to manage power flow and protect against overloads, ensuring system stability.
A large glass fuse acts as an additional safeguard, protecting the card from potential short circuits and ensuring uninterrupted operation.
Enhanced with a small red LED for visual feedback, the DS3800HPTK also includes a small blue potentiometer for adjustable settings, catering to specific application requirements.
