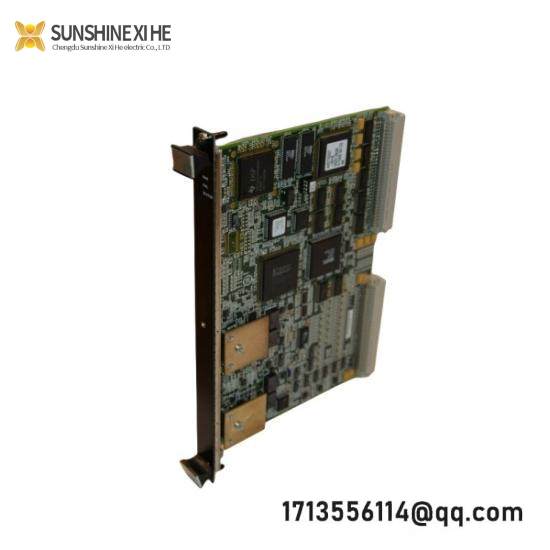

General Electric VAIC H1D IS200VAICH1DAB Analog Input/Output Board

Manufacturer:General Electric

Model:IS200VAICH1DAB

Series:Mark VI

Functional Description:Double-Slot Analog I/O Board

Instruction Manual:GEH-6421

Functional Acronym:VAIC

PCB Coating:Conformal Coating

Functional Revision😀

Dimensions:Standard size for VME bus

Operating Temperature Range:-20°C to +70°C

Voltage Input Range:0 to 10V DC

Current Input Range:0 to 20mA

Power Consumption:Low power consumption, optimized for efficiency

    The General Electric VAIC H1D IS200VAICH1DAB Analog Input/Output Board is engineered for seamless integration into complex industrial control systems, offering unparalleled precision and reliability in signal processing and control tasks.

    This board is meticulously designed to handle a wide range of environmental conditions, ensuring stable operation across various industrial settings. With an operating temperature range of -40°C to +70°C and a storage temperature of -55°C to +85°C, it can withstand extreme environments without compromising performance.

    Featuring a robust VME Bus interface, the IS200VAICH1DAB board ensures high-speed data transfer, facilitating efficient communication within the system. It supports up to 16 analog input channels and four relay outputs, providing flexibility in signal processing and control applications.

    The board is equipped with a 1 kΩ input resistance and a 50 Ω output impedance, which optimizes signal integrity and minimizes signal distortion. The noise reduction capability, exceeding 90 dB, ensures minimal interference, enhancing the overall system accuracy.

    The General Electric VAIC H1D IS200VAICH1DAB Analog Input/Output Board complies with industry standards, including UL, CE, and RoHS, ensuring safety and environmental responsibility. It is a reliable choice for demanding industrial applications, offering peace of mind and superior performance.
