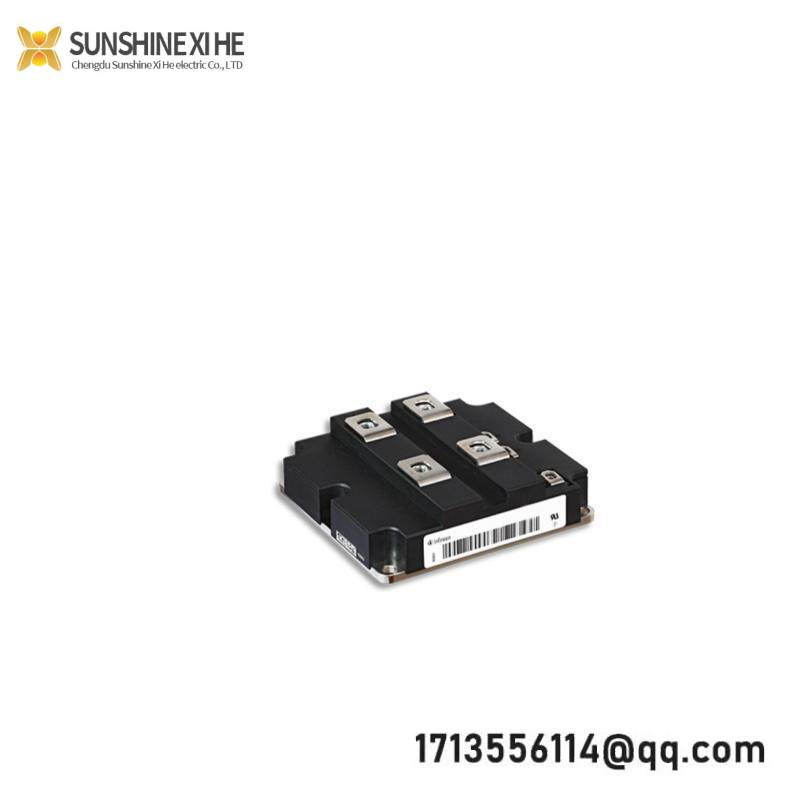

Infineon FZ800R33KF2C, 3300V, 800A IGBT Module, Advanced Power Electronics Solution

Device Rating:3300V, 800A

Switching Frequency:Up to 10 kHz

Thermal Resistance:≤1.3°C/W (with heatsink)

Operating Temperature Range:-40°C to +175°C

Insulation Resistance:≥50 MΩ

Electrical Isolation:2 kVrms

Mechanical Durability:10,000 cycles

Cooling Method:Air Cooled

    The Infineon FZ800R33KF2C IGBT module is designed with advanced semiconductor technology, ensuring superior power density and efficiency for demanding industrial control applications. Its high operating voltage and current ratings make it suitable for applications ranging from motor control to power conversion systems.

    Featuring a TO-247-3 package, this module offers excellent heat dissipation capabilities, enhancing its reliability in harsh industrial environments. With its high insulation resistance and wide temperature range, it ensures stable operation under various conditions.

    The FZ800R33KF2C supports high switching frequencies, enabling fast response times and smooth operation in dynamic control scenarios. Its robust construction withstands peak pulse currents, making it ideal for applications where transient overcurrents are common.

    This IGBT module is part of Infineon’s extensive portfolio, known for its commitment to innovation and reliability. It undergoes rigorous testing to meet industry standards, ensuring quality and safety for end-users.

    For detailed installation and operational guidance, refer to the accompanying user manual. Our technical support team is available to assist with any queries or customization requirements, ensuring a seamless integration into your industrial control system.
