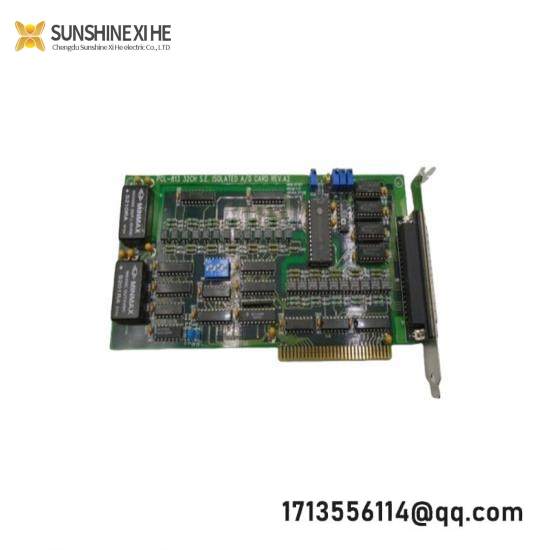

JL PCL-813 – Isolated Analog Input Card: JL Electronics, Model 813, Analog Input Module

Number of Channels:8

Analog Input Range:-10V to +10V

Isolation Voltage:1000V AC

Power Consumption:1W

Operating Temperature:-40°C to +85°C

Operating Humidity:5% to 95% non-condensing

Dimensions:54mm x 100mm x 18mm

Connection Type:DIN Rail

Communication Protocol:RS-485

    The JL PCL-813 Isolated Analog Input Card is engineered for critical applications requiring high-precision data acquisition, boasting an isolation rating of 1000VAC that ensures robust protection against electrical interference.

    Featuring eight independent analog input channels, this module offers flexibility in monitoring various physical parameters such as temperature, pressure, and flow rates across diverse industrial settings.

    With a versatile supply voltage range of DC 5V to DC 30V, the JL PCL-813 can operate seamlessly in a wide variety of environments, ensuring compatibility with existing power sources.

    Engineered for durability and reliability, this module is designed to withstand extreme temperatures from -40°C to +85°C, making it suitable for harsh industrial conditions.

    Equipped with a fast data acquisition speed of 100ms, the JL PCL-813 ensures real-time monitoring and response capabilities, enhancing operational efficiency and system performance.
