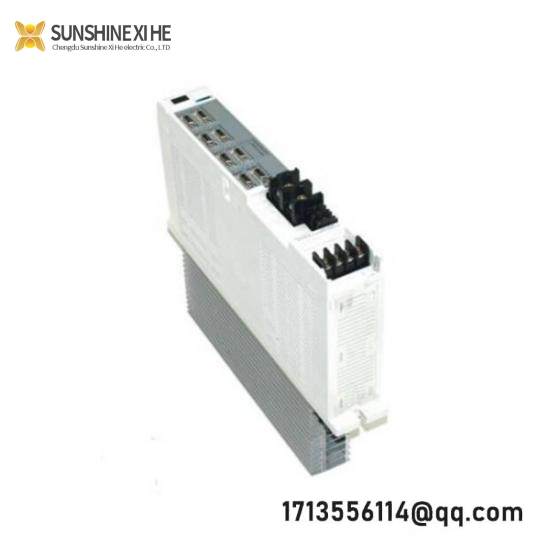

Mitsubishi MDS-B-SPH-37 Servo Spindle Drive Unit

Rated Output (kW):1.5

Rated Torque (Nm):9.55

Rated Speed (r/min):1500

Max. Current (A):23

Voltage, Frequency (Sinusoidal PWM Control):3AC 200-230V 50/60Hz

Power Board Current (A):13.5A

Control Board Current (A):0.3A

Weight (kg):35

    The Mitsubishi MDS-B-SPH-37 Servo Spindle Drive Unit is meticulously engineered to meet the demanding requirements of modern industrial environments. It combines robust design with advanced technology, ensuring superior performance and reliability in applications requiring high accuracy and precision.

    Featuring a compact size and efficient power management, this drive unit is compatible with a wide range of spindle motors, enhancing operational flexibility. Its sensorless vector control capability supports both induction and permanent magnet motors up to 599 Hz, delivering smooth and precise control.

    Equipped with an integrated braking chopper, it ensures quick and safe stoppage, contributing to enhanced safety standards in the workplace. The unit is built with coated boards, providing resistance against harsh environmental conditions and ensuring longevity in applications exposed to dust, moisture, or corrosive substances.

    Designed with ease of integration in mind, the Mitsubishi MDS-B-SPH-37 offers quick commissioning through the use of application macros and panel assistants. This streamlines installation and setup processes, allowing operators to focus on productivity rather than technical complexities.

    Certified for operation in SIL3 safety levels, this drive unit guarantees reliable performance even in critical applications where safety is paramount. Its modular design facilitates easy maintenance and upgradeability, ensuring that the system remains at the forefront of technological advancements.
