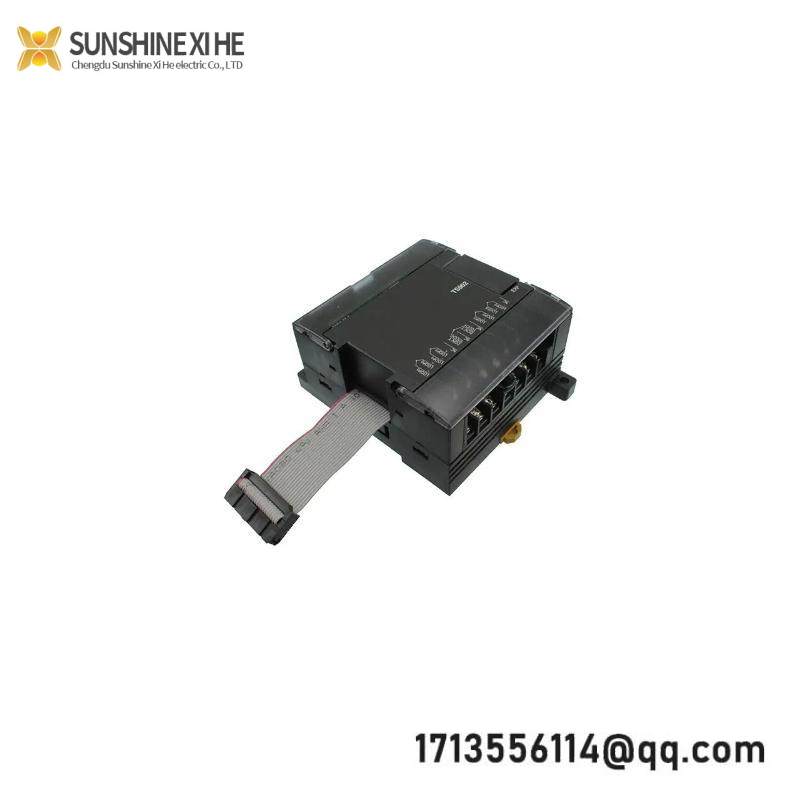

OMRON CP1W-TS002 I/O Expansion Module: 4 x Thermocouple Inputs Types J & K

Number of Thermocouple Inputs:4

Thermocouple Types Supported:Type J, Type K

Operating Voltage:DC 24V

Current Consumption:Max. 50mA per channel

Accuracy:+/- 0.5% FS (+/- 1 count)

Communication Interface:CompoNet

Mounting Mode:DIN Rail

Environmental Compliance:UL/cULus (Class I Division 2 Products for Hazardous Locations), NK, CE Directives

Temperature Range:-40°C to +85°C

    The OMRON CP1W-TS002 I/O Expansion Module is specifically engineered to enhance the functionality of CP1W Series Programmable Logic Controllers (PLCs), providing precise temperature measurement capabilities through its four dedicated thermocouple inputs supporting types J and K. This module is an essential component for industries requiring accurate temperature control and monitoring, ensuring operational efficiency and safety.

    With its compact design and robust enclosure rated for IP20 protection, the CP1W-TS002 can withstand harsh industrial environments. The panel mounting mode facilitates easy installation in various locations within a facility, offering flexibility for diverse applications.

    Each thermocouple input is equipped to handle a supply voltage of DC 24V, with a typical current consumption of 5mA per channel, ensuring minimal power draw and efficient operation. The input resistance ranges from 5 kΩ to 1 MΩ, making it compatible with a wide variety of thermocouples for precise readings.

    Operating within a temperature range of -10°C to +55°C, this module ensures reliable performance across a broad spectrum of environmental conditions, supporting continuous and accurate temperature monitoring in diverse industrial settings.

    Engineered with high-quality materials, the OMRON CP1W-TS002 I/O Expansion Module offers exceptional durability and reliability, backed by OMRON’s commitment to innovation and excellence in automation solutions. It seamlessly integrates with the CP1W Series PLCs, simplifying system setup and maintenance, and providing a cost-effective solution for enhancing temperature management in industrial processes.
