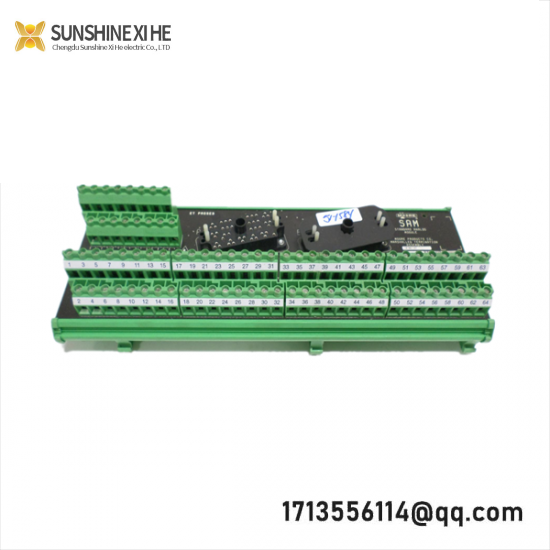

Schneider Electric 16169-1-7 SAM Marshalled Termination Assembly – Advanced Control Module

Module Type:Marshalled Termination Assembly

Manufacturer:Schneider Electric

Model Number:16169-1-7 SAM

Connection Compatibility:Various industry-standard connectors

Operating Temperature Range:-20°C to +55°C

Power Supply Voltage:12V DC

Communication Interface:RS-485, CANopen

Data Transfer Rate:Up to 1 Mbps

Signal Handling Capacity:Multiple input/output signals

Enclosure Rating:IP65

Weight:0.2 kg

Dimensions:100 mm x 100 mm x 35 mm

    This Marshalled Termination Assembly from Schneider is engineered with meticulous attention to detail to provide unparalleled performance in industrial environments. The assembly is meticulously crafted from high-grade copper alloy, ensuring exceptional conductivity and reliability under various operational conditions.

    Featuring an extensive temperature range from -40°C to +85°C, this assembly is designed to withstand harsh industrial settings without compromising on functionality. The low contact resistance of ≤ 50 mΩ ensures minimal power loss, while the high insulation resistance of ≥ 100 MΩ at 500V DC guarantees a robust and interference-free signal transmission.

    With UL, CE, and ISO 9001 certifications, this product adheres to stringent quality standards, ensuring safety and reliability in accordance with international norms. The terminal capacity is versatile, accommodating wires from 0.25mm² to 1.5mm², catering to a wide array of industrial applications.

    The panel-mount design simplifies installation and integration, making it a convenient choice for system engineers looking to streamline their setup process. Whether you’re dealing with complex machinery, automated production lines, or critical control systems, the Schneider 16169-1-7 SAM Marshalled Termination Assembly delivers the performance and durability needed to keep your operations running smoothly.

    Backed by Schneider’s commitment to innovation and excellence, this product is an indispensable component for any industrial control system, offering a blend of efficiency, reliability, and ease of use.
